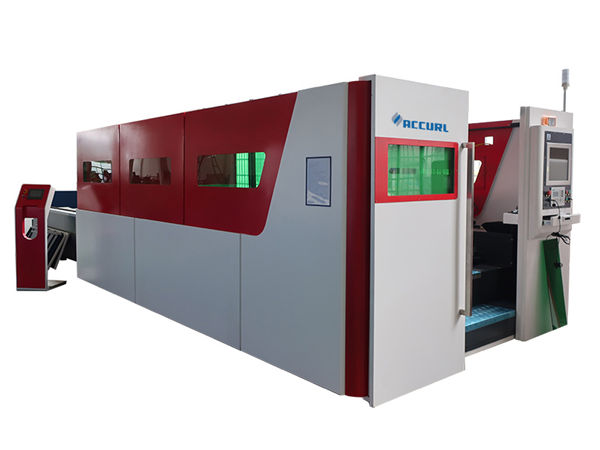

1000w fiber laser tube cutting machine

Product Details

Certification: CE
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: USD Per SET
Packaging Details: Wooden box with iron binding belt
Delivery Time: 20-30 Work Days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 2000 Units per year

Detailed Product Description

Laser Type:	Fiber Laser Source	Cutting Area:	Diameter 20-200mm
Cooling Mode:	Water Cooling	Application:	Applicable Material
Working Voltage:	380V/50Hz	Focus Method:	Following And Automatic Adjust Focus
Transmission Method:	Gear And Rack	Laser Power:	500W 1000W 1500W 2000W
Cutting Speed:	0-60000mm/min	Brand:	Riselaser

laser tube cutting is specifically designed for manufacturers who care about high-quality products and tube cutting. Fully protective cover is able to keep the operators out of the damage of laser beam. Easy usage, maintenance and service have been achieved by the high-tech of fiber lasers. Rack & Pinion, Guide Linear and Auto motor have assured our high acceleration.

Main Feature

1> The whole structure is welded, stable performance, to ensure the stable operation

2> With 650 degree high temperature heat treatment working bed and a large milling machine high precision machining to ensure the stability and smoothness of the working bed.

3> New beautiful designed, fully enclosed protective cover.

Technical Parameters

Tube length	6000mm
Tube outer diameter	20-200mm
Fiber Laser Source	1500W
Laser cutting head	Raytools
Cooling model	Water cooling
X/Y Position Accuracy	±0.05mm
X/Y Reposition Accuracy	±0.03mm/m
Minimum line width	0.15mm
Laser life(hrs)	100,000

Cutting Parameter

	500W	1000W	1500W	2000W	3300W
Stainless steel	0.5-3	0.5-5mm	1.5-6mm	1-8mm	1-10mm
Mild Steel/Carbon	1-6	1-10mm	1-14mm	1-18mm	1-20mm
Aluminium		1-4mm	1-6mm	1-8mm	1-10mm

Samples

FAQ

Q1. Trading company or manufacturer?
A: We are a professional manufacturer!

Q2: How long does it take to learn how to operate a laser cutting machine?
A: If you are able to use some basic CAD software, it will only take a few hours, some simple tests on different processing materials are required to learn how to adjust the speed and laser power.

Q3. What should I do when the machine is in trouble?
A: Follow the instructions of our manual to make sure all the wires be connecting well,and keep your lens mirrors clean,then share details with our technicians.

Q4: Is it harmful to human body when in operation ?
A: It is safe if you do as manual and keep your skin and eyes away from the laser light(invisible).
