Product Details
Detailed Product Description

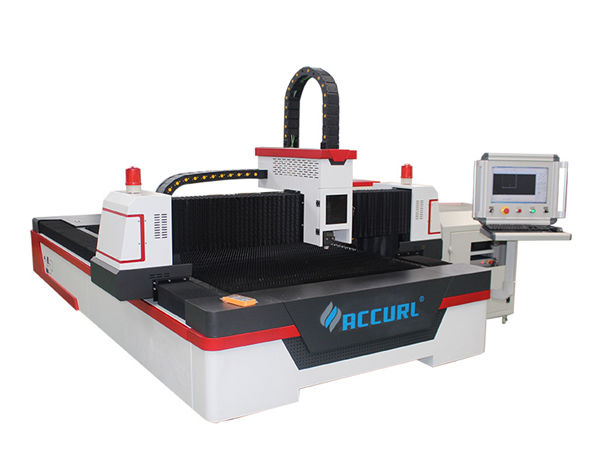

Product Name: | Fully Enclosed Exchange Table Fiber Laser Cutting Machine | Laser Power: | 1000w |
---|---|---|---|
Laser Wavelength: | 1080nm | Working Area: | 3000*1500mm |
Chiller: | S&A | Package: | Wooden Crate |
Product Desciption
Full closed protection improves using security; laser protection glass isolates laser radiation to human beings; automatic collection system of smokes and dusts is environment friendly; intelligent monitoring system reduces accident rate, making us enjoy beauty and health in cutting process.
After artificial aging, solution treatment and finishing, crossbeam owns good integrity, rigidity, surface quality, toughness and ductility. Aluminum alloy’s metal characteristics of light weight and strong rigidity are helpful to high speed movement in processing, and high flexibility is beneficial to high-speed cutting of various graphics based on high accuracy. Light crossbeam can give equipment a high operation speed, improving processing efficiency to ensure processing quality.
Touch screen
The first one to use UI design in the world which lets display respond to processing table, making processing more intuitive; 1920 * 1080 high-definition capacitive 10 points touch screen, equivalent to the ipad positioning accuracy; Elegant curves precisely fit machine body. Strong waterproof breathable system creates the best space, making operation more convenient; Diamond cutting process and HD plasma tempered glass make screen more exquisite and comfortable to use; more enjoyable operation and pleasant mood can improve work efficiency.
Double HD Cameras
Partitioning monitoring, no blind corner in machining region, to monitor every point at any time, intuitive machining, secure operation and controllable process.
Specifications
Laser wavelength | 1080nm |
Cutting thickness | 0.2-16mm |
Laser output power | 1000W |
Maximum processing range | 3000 *1500mm |
Machine drive mode | imported rack gear and pinon drive |
Y X. axis positioning accuracy | ±0.01mm |
X.Y axis repeat positioning accuracy | ±0.01mm |
Power supply mode | 380V / 50Hz |
Maximum cutting speed | 45m/min |
Minimum cutting line width | 0.02mm |
Cooling mode | 3P Water cooling |
