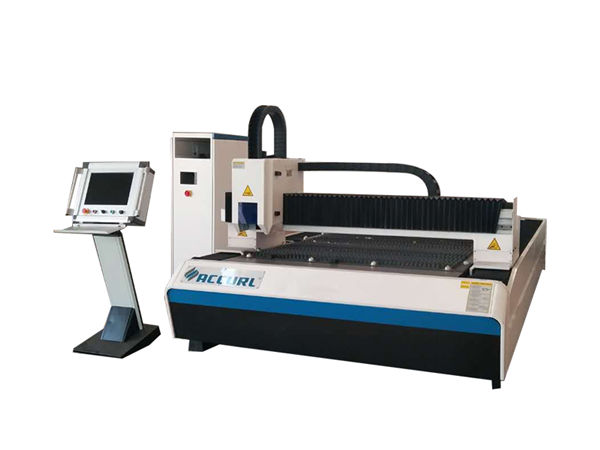

25m / min sheet metal laser cutting machine space saving with light path system

Product Details

Certification: ISO9001:2008

Payment & Shipping Terms:

Minimum Order Quantity: 1

Price: negotiation

Packaging Details: Wooden case

Delivery Time: 7-15 days

Supply Ability: 1 units/ month

Detailed Product Description

Product Name:	Metal Sheet Laser Cutter	Laser Power:	1000w 1500w
Laser Wavelength:	1080nm	Working Area:	3000*1500mm
Cutting Thickness:	0-16MM (depends On Laser Power)	Power Supply:	380v
Warranty:	1 Year

Product Description

1. Integrated machine design: left and right collecting drawer on the left and right side of the machine,highly saving space.
2. Stability and reliability of light path system and control system.
3. Fiber laser has high and stable function and lifespan which is over 100000 hours.
4. Higher cutting quality and efficiency with cutting speed being up to 25m/min with perfect cutting edge.
5. High performance reducer, gear and rack; Japanese guide and ball screw.

Main Features

1. Easy operations: fiber line transmission, no adjustment of optical path;
2. Fast cutting speed: Cutting speed is more than 20m/min.
3. Super flexible optical effects: Compact design, easy to flexible manufacturing requirements.
4. High efficiency for photoelectric conversion: Compare with CO2 laser cutting machine, fiber laser cutting machine has 3 times photoelectric conversion efficiency
5. Excellent beam quality: Smaller focus diameter and high work efficiency, high quality.
6. Low cost & Low maintenance: Save energy and protect environment. Photoelectric conversion rate is up to 25-30%. Low electric power consumption, it is only about 20%-30% of traditional CO2 laser cutting machine. Fiber line transmission no need reflect lens, save maintenance cost;
7. Stable running: Adopting the top world import fiber lasers, stable performance, key parts can reach 100,000 hours;

Technical Specifications

^{Laser wavelength}	^1080nm
^{Cutting thickness}	^0.2-16mm
^{Laser output power}	^1000W
^{Maximum processing range}	^{3000 *1500mm}
^{Machine drive mode}	^{imported rack gear and pinon drive}
^{Y X. axis positioning accuracy}	^±0.01mm
^{X.Y axis repeat positioning accuracy}	^±0.01mm
^{Power supply mode}	^{380V / 50Hz}
^{Maximum cutting speed}	^45m/min
^{Minimum cutting line width}	^0.02mm
^{Cooling mode}	^{3P Water cooling}

Sheet Metal Laser Cutting Machine Application

Application materials: mainly non-contact cutting metal materials, carbon steel, stainless steel, aluminum, titanium, galvanized plate, galvanized plate, silicon steel, pickling board and other fragile alloys.
Applications industry: household appliances, sheet metal processing, precision metal parts (aerospace), electronic appliances, subway parts, auto machinery, metallurgical equipment, gifts, tools, processing, advertising decoration and other industries.
