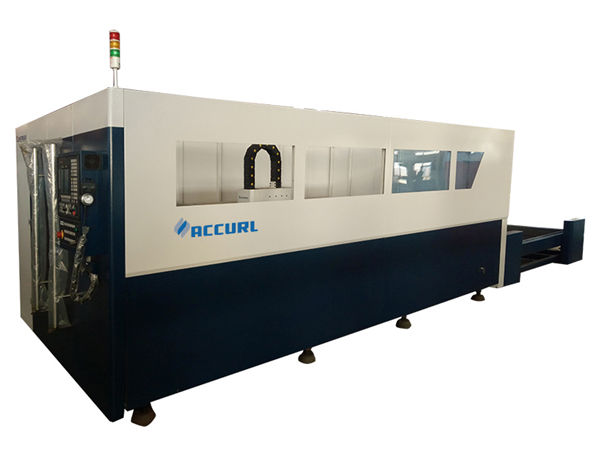

700-2000w fiber metal laser cutting machine with water cooling

700-2000w fiber metal laser cutting machine with water cooling

Product Details

Certification: CE
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: Negotiable
Packaging Details: 1*20GP container
Delivery Time: 30days
Payment Terms: L/C, D/A, T/T, D/P, Western Union

Detailed Product Description

Application::All Metal MaterialCutting Thickness:SS Upto 6mm, MS Upto 16mm
Laser Type::FiberCNC Or Not::Yes
Cooling Mode::Water CoolingControl Software::Cypcut
Graphic Format Supported::AI, BMP, DST, DWG, DXF, DXP, LAS, PLTPlace Of Origin::China
Model Number::TY-3015JBAfter-sales Service Provided::Engineers Available To Service Machinery Overseas
Repeating Accuracy::+-0.03mmOperating Temperature::0°C-45°C
Working Humidity::5%-95%Laser Source:Chinese Or Imported
Voltage::AC380V±10% 50HZ(60HZ)Cutting Area:3000*1500mm Standard, Bigger Can Be Customized

Product Description

Fiber Laser Cutting Machine is applied for all metals cutting, Especially suitable for stainless steel, carbon steel, galvanized plate and so on.
Widely used in sheet metal products, steel structure, precision machinery, auto parts, glasses, jewelry,
nameplate, advertising, handicrafts, electronics, toys, packaging and other industries

Applied Materials

Stainless Steel, Carbon Steel, Alloy Steel, Silicon Steel, Spring Steel, Galvanize Plate, Pickled Plate, Brass Plate, Copper Plate, Aluminum Plate, Etc

Specification

Laser SourceIPG/Raycus/Max
Machine Bodygantry structure
Working TravelHigh Precision Ball screw numerical control table with feeding device
Max running speed80m/min
X/Y location precision0.03mm/m
Power Supply380V 50Hz/60Hz
X/Y repeated location precision±0.03mm
Running Temperature0°C-45°C
Max Acceleration1.0G
Machine gross power<16KVA
Applied MaterialsThin mild steel, stainless steel and other kinds of metallic sheets
Cutting Area3000mm*1500mm/4000mm*2000mm/6000mm*2000mm
Total Weight4500KGS

Cutting Reference Table

Laser PowerMax cutting thickness
Carbon steel(mm)Stainless steel(mm)Aluminum (mm)Brass

(mm)

800W8311
1000W12422.5
1500W14543
2000W16654
3000W221068
Above parameter for reference only

Detailed Images

Name:Machine body and accessoriesa.600℃ heat treatment, 24 hours cooling in the oven, accurate CO2 protection welding, to make sure 20 years usage without deformation.
b.Synchronous X/Y/Z axes: The Z-axis can run 150mm, suitable for cutting many varieties of metal sheets.
c.High quality guarantees its durability and easier maintenance.
Name:AC servo motor & driverThe imported servo motor (Y-axis driven by two servo motors) along with the sophisticated planetary reducer ensures steady, precise and reliable drive.
Name:Precision Linear GuidesAdvanced cutting system, laser power and servo movement suit each other perfectly, imported high precision gear and rack drive system, exchangeable double work table, to ensure higher processing speed and accuracy..
Name:Cutting headThe contactless cutting head has the function of auto height tracking and anti-collision, which greatly improves cutting speed, smoothness and cutting accuracy under the same output power. In a word, the cutting efficiency can be increased.
Name:Laser sourcefast speed,high precision cutting line, and smooth cutting edge

Cutting Samples

Training

After-sales service, from training to machine installation (3 ways):

1.Training video and user's manual in English to be offered for installation, operation, maintenance and trouble-shooting, and technical guide to be offered by e-mail, fax, telephone/whatsapp /skype//and so on, when you meet some problems of installation, using or adjusting.
2.Your company can arrange technologist come our factory to learn basic knowledge of equipment and operating essentials , sufficient training time about 3-5days , the training content is as follows:
a) Common drawing software training ;
b) Machine on and off training procedures ;
c) The significance of control panel and software parameters, parameters range’s setting
d) Basic cleaning and maintenance of the machine ;
e) Common Hardware Troubleshooting ;
f) Caution of operation.
3.Door-to-door instruction training service. visa, traveling expenses and accommodation will be at customer's cost. It's better to arrange a translator for both of our engineers during the training period. Training Time: 3-5days.

Warranty

a).1Year for the whole machine(Man-made Damage is negotiated.).
b).Laser source 2 Years warranty
c).Lifelong maintenance and spare parts supply
d).Free training for operation staffs. (engineer can go abroad is negotiated.)

Packaging and shipping

1.Our wooden case is after fumigation treatment.Needn’t timber inspection,saving shipping time.
2.All the spare parts of the machine were covered by some soft materials,mainly using pearl wool.
Avoiding all damages that could happen in the delivery process.Then we’ll covered plastic wrap out it tightly,make sure intact of the covered soft materials,also avoiding Waterproof and rust proof.
3.The outmost is wooden case with fixed formwork.
4.The bottom of the wooden case has firm iron jack,convenient to Handling and transport.
