accurate small cnc laser cutting machine , mini cnc laser cutter for glasses

Product Details

Certification: ISO9001:2008

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit

Price: negotiation

Packaging Details: Wooden Case

Delivery Time: 7-15 days

Supply Ability: 2000 units per month

Detailed Product Description

Product Name:	Fiber Laser Cutting Machine	Laser Power:	500w/800w
Working Area:	500*500mm	Max Moving Speed:	60m/min
Positioning Accuracy:	± 0.01-0.03	Powe Supply:	3×380V±10% 220V±10%
Package:	Wooden Case	Warranty:	1 Year

Products Description

Precision laser cutting machine is designed and made by RISE LASER. Adopted with leading laser technology for thin sheet metal application. The machine is combined with marble and Cypcut laser cutting system. With Integrated designing, dual gantry linear motor driving system, friendly interface and long term stable working.

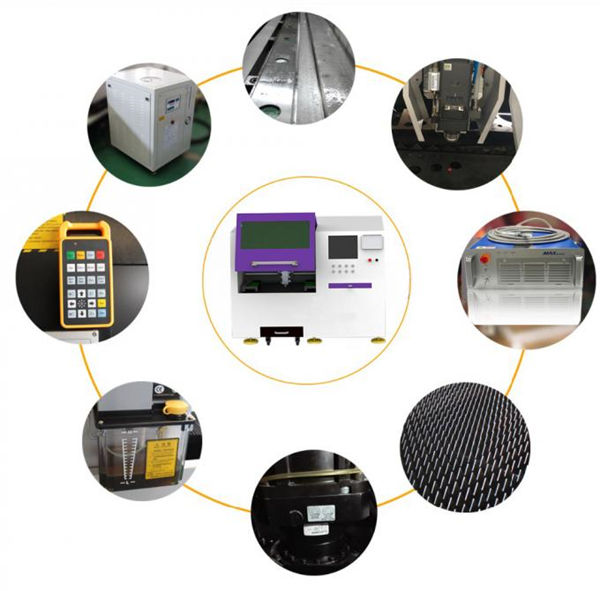

Main Features of Fiber Laser Cutting Machine

1. Spare parts:Servo motor from France, reduction gear and guide rail,etc are imported with original packaging.
2. Accuracy:Its speed and accuracy are guaranteed by using gear grinding with high precision,imported guide rail and laser cutting head under strict assembly.
3. Cutting:The laser cutting head which is imported with original packaging coordinates with spare parts which have high speed and precision to bring superb cutting quality.
4. The laser generator can be made in China or imported according to request from customers.Both two types can be maintained freely.

Product Advantage

1. Widely used in glasses, electronics, appliances and other precision machinery,hardware, microelectronics industry.
2.600 ° heat treatment and 24 hours with the furnace cooling, 8 meters gantry milling finishing, precision welding protection of carbon dioxide, to ensure the normal use for 20 years without deformation.
3. Rail installation with precision collimator test, the accuracy is less than 0.01mm.
4. Taiwan grinding screw drive.
5. High precision, speed, cutting surface smooth.
6. Configure Yaskawa servo system inertia in driving high accuracy.
7. Fully enclosed protective Cover.

^{Technical Parameter}

^{Processing format}	^{( L × W) 500mm * 500mm}
^Laser	^{300W / 500W /800W/ 1000W/1500W (optional)}
^Dimensions	^{1700 * 1190 * 1850mm}
^{Cutting material thickness}	^{0.1-2mm (depending on material)}
^{Repeat positioning accuracy}	^{± 0.01mm / m}
^{Maximum speed}	^{40m / min}
^{Maximum Acceleration}	^0.5G
^{Machine weight}	^800kg
^{Machine Operating temperature}	^{0 ℃ -40 ℃}
^Transmission	^{grinding precision screw drive}
^Name	^{High precision 800W fiber laser cutting machine mini cnc laser cutter}

Product Application

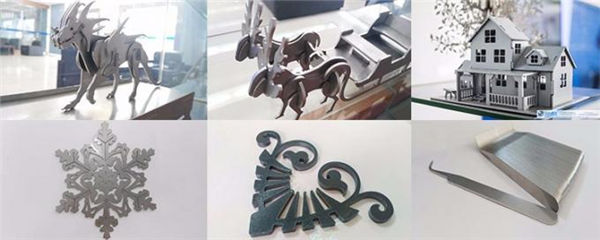

Application Materials: Fiber Laser Cutting Equipment is suitable for metal cutting like Stainless Steel Sheet, Mild Steel Plate, Carbon Steel Sheet, Alloy Steel Plate, Spring steel Sheet, Iron Plate, Galvanized Iron, Galvanized Sheet, Aluminum Plate, Copper Sheet, Brass Sheet, Bronze Plate, Gold Plate, Silver Plate, Titanium Plate, Metal Sheet, Metal Plate, Tubes and Pipes, etc
Application Industries: Fiber Laser Cutting Machines are widely used in manufacture Billboard, Advertising, Signs, Signage, Metal Letters, LED Letters, Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal crafts, metal art ware, elevator panel cutting, hardware, auto parts, Glasses Frame, Electronic Parts, Nameplates, etc.

^{Cutting parameter}

^Power(W)	^Material	^{Thickness(mm)}	^{Cutting speed(m/min)}	^Gas
⁸⁰⁰	^{Stainless steel}	¹	^8-9	^N2
		²	^5-6	^N2
		³	^1.8-2	^N2
		⁴	^1.2-1.3	^N2
⁸⁰⁰	^{Carbon steel}	¹	^8-10	^O2
		²	^4-5	^O2
		³	^2.8-3	^O2
		⁴	^1.4-1.8	^O2
		⁵	^1.2-1.5	^O2
		⁶	^0.9-1.1	^O2
		⁸	^0.6-0.7	^O2
