Product Details

Certification: ISO9001:2008, CE
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: USD negotiable
Packaging Details: 1.Whole film packaging machine 2. Anti-collision with whole machine foam package edge 3.Plywood wooden box with metal belt
Delivery Time: 30 work days
Payment Terms: T/T, MoneyGram, Western Union, L/C
Supply Ability: 2000 units

Detailed Product Description

Product Name:Plate And Tubes Fiber Laser Cutting MachineApplication:Tube Cutting
Cutting Thickness:0-25mmCutting Area:1500*3000mm
Cutting Speed:AdjustableCNC Or Not:Yes
Z Axis Path:100mmWorking Table:Fixed Working Table
Laser Head:Precitec / Laser MechMaximum Acceleration:1.5G

In order to meet the increasingly complex needs of consumers, Rise Laser is targeted at market demand, independently developed RL3015 sheet and pipe integrated laser fiber cutting machine, one machine dual purpose, this machine solves double cutting needs by one time​.
1. 300w, 500w, 800w, 1000w, 2000w 3000w Maxphotonics fiber optic laser optional
2. Fiber Cutting aluminum, carbon steel, iron, stainless steel, silver, hardware, sheet metal processing, metal tube pipe materials ,etc..
3. China Top manufactuers, best price and quality, with CE & FDA & ISO certificates
4. Fiber Cutting thickness 1mm, 1.5mm, 2mm, 3mm, 5mm, 6mm, up to 20mm
5. RL3015 Tube pipe fiber laser cutting machine, 1500*3000mm
6. Price for 1000W Stainless steel silver metal tube pipe CNC fiber laser cutting machine

NameFiber Laser Tube Cutting Machine 800W Hiph Precison Cutting for Metal Tube and Plate
ModelCF1530C
Working area1500*3000mm
Laser power500w,800w,1000w,1500w,2000w,2500w,3000w
Laser typeFiber laser
Cooling waysWater cooling
Mininum line width0.1mm
Cutting speed0-35m/min
Max moving speed90m/min
Locating accuracy≤0.03mm
repeatable accuracy≤0.02mm
Maximum Acceleration1.5G
Controlling softwareCYPCUT
Format supportedPLT,DXF,AI,G code,etc
Software environmentWindows xp/7/8/10
Compatible softwareCoreldraw,Autocad
Driving systemHigh precision servo motor with gear and rack
Auxiliary accessoriesExhaust fan,fume tubes,water chiller,tools box
Working tableJagged blade working table (Sawteeth)
Applicable materialsCarbon steel,stainess steel,brass,copper,aluminum,etc
Power supply220v/380v/440v,50hz/60hz
Working environment Temperature0-45℃,Humidity5-95%(no condensate water.)
Continuous working time24 hrs each day
Dimension8150*2825*2125mm
weight7 ton

Technical Parameters

Cutting Area3000mm/6000mm
Laser Power500 800W 1000W– 3KW Fiber
Software InterfaceIncluded w/ PC control tower
Material Capabilitymetals and some dark acrylics
Motor typeServo motors on ball screw drive
Laser / PC ConnectivityUSB connection
Power Supply380V three phases
Warranty2 Years (includes parts & laser power)
ClassClass 4 laser
Diameter of the pipe and tubeΦ20-Φ200mm
Length of the pipe and tube6000mm
Route of the X axis300mm
Route of the Y axis6500mm
The rotary angle of the W axisn*360° NO LIMITS
Reposition precision of the X/Y axis±0.02mm
Max revolving speed of the W axis80RPM
Max moving speed of the X axis50m/min
Max accelerated speed of the X axis1.2G
Max accelerated speed of the Y axis0.6G
The chuck formDouble pneumatic chuck
Max loading400kg
Size10000*1800*2300mm
Weight of the whole machine5000kg
Motor configurationX:850W/Y:3000W/W:3000W



Cutting thickness vs speed(m/min)
Materialthickness/mm500w|m/min1000w1500w2000w3000w4000w
Carbon steel0.2
0.4-
0.6--
0.8--
1101624273035
1.5------
261012152124
2.5------
3356.581215



Carbon steel41.52.566.51013
50.825.56911
60.61.544.57.59
8133.567
100.82.534.56
120.51.823.55
161.82.5
200.61
220.5
24



Stainless steel0.5
0.6
0.8
1101624283035
1.5
2469152125
327.291215
41.54.25.4911
5134.268
62.12.74.25
81.51.833.5
100.50.91.51.8
120.61.1
140.5

Product Advantage

1. Electric-driver motor in rotary device adjust speed freely, Easy-work, low noisy,high rotary speed,high accuracy.
2. Intersecting line can be cut. Best choice for tubular construction.
3.Imported high precision transmission device which is perfectly work with servo system, thus it can make sure cutting precision and efficiency.
4. Excellent path quality: Smaller laser dot and high work efficiency, high quality.
5. High cutting speed: cutting speed is 2-3 times than same power CO2 laser cutting machine.
6. Stable running: adopt top world import fiber lasers, stable performance, key parts can reach 100,000 hours;
7. High efficiency for photoelectric conversion: Compare with CO2 laser cutting machine, fiber laser cutting machine have three times photoelectric conversion efficiency.
8. Low cost: Save energy and protect environment. Photoelectric conversion rate is up to 25-30%. Low electric power consumption, it is only about 20%-30% of traditional CO2 laser cutting machine.
9. Low maintenance: fiber line transmission no need reflect lens, save maintenance cost;
10. Easy operations: fiber line transmission, no adjustment of optical path.

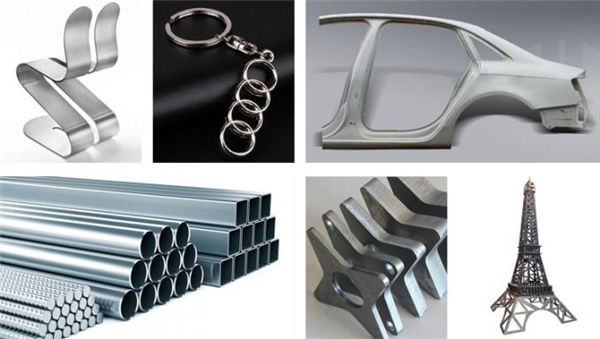

Application

1. Clean cut edges without burr for more efficient material utilization
and reduced secondary operations.
2. Cutting of various material thicknesses and combinations in one operation
3. No material deformation due to contactless material processing
4. Highly controllable, repeatable and accurate processing.Etc.
Since sheet and pipe integrated design, Industry adaptability of RL3015 has been greatly enhanced, including petroleum and pipe material, fitness equipment and other pipe material mainly mechanical processing, automotive Manufacturing, Machine cabinet and other board materials mainly mechanical processing etc.
