Product Details
Certification: CE
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: Negotiable
Packaging Details: 1*40GP container
Delivery Time: 30days
Payment Terms: L/C, D/A, T/T, D/P, Western Union
Detailed Product Description
| Application:: | All Metal Material | Cutting Thickness: | SS Upto 10mm, MS Upto 22cm |
|---|---|---|---|
| Laser Type:: | Fiber | CNC Or Not:: | Yes |
| Cooling Mode:: | Water Cooling | Control Software:: | Cypcut |
| Graphic Format Supported:: | AI, BMP, DST, DWG, DXF, DXP, LAS, PLT | Place Of Origin:: | China |
| Model Number:: | TY-6020JB | After-sales Service Provided:: | Engineers Available To Service Machinery Overseas |
| Repeating Accuracy:: | +-0.03mm | Operating Temperature:: | 0°C-45°C |
| Working Humidity:: | 5%-95% | Laser Source: | Chinese Or Imported |
| Voltage:: | AC380V±10% 50HZ(60HZ) | Cutting Area: | 6000x2000mm |
Product Description

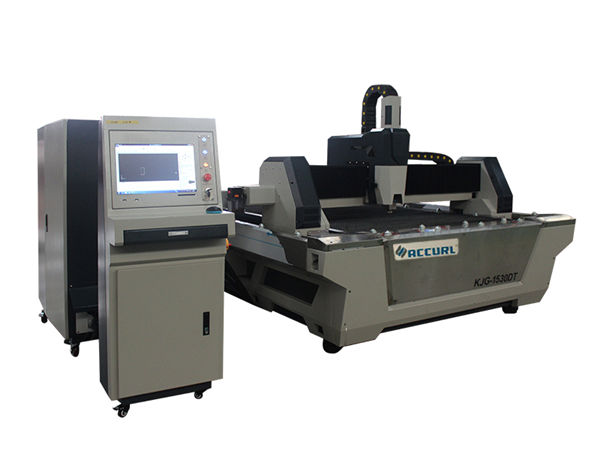

Fiber laser cutting machine of JB series with full protective cover
Especially suitable for stainless steel, carbon steel, galvanized plate and so on.
Widely used in sheet metal products, steel structure, precision machinery, auto parts, glasses, jewelry,
nameplate, advertising, handicrafts, electronics, toys, packaging and other industries
Main Features of Fiber laser cutting machine
Machine body:
1. Taiyi's Machine body with 8mm steel structure, 600℃ heat treatment, Precise welding, to make sure 20 years usage without deformation.
2. Gantry with magnesium alloy casting, Strong stability without deformation, Fast movement.
3. High efficiency zoning smoking system at both sides of machine body, Strong segmented dust and smoking collection, it will reduce harm to worker.
4. Imported precision flange reducer and servo motor, Fast running speed.
5. 70 blades and 6 slide bars on the machine bed, with close blades to reduce machine warning, slide bars working with cylinders to upload and download sheets easily.
6. Flexible loading box can be opended front and both sides which is convinient for machine working condition.
Specification
| Laser source medium | Fiber |
| Cutting range (L * W) | 6000 mm × 2000 mm |
| Z axle stroke | 250 mm |
| Max. positioning speed | 120 m/min |
| X,Y axle Max. accelerate speed | 1.0G |
| Cooling form | Water cooling |
| Laser wavelength | 1070nm |
| Output power of laser source
| 1000W / 1500W / 2000W 2500W / 3000W / 4000W (Optional) |
| Min. cutting gap | ≤ 0.1 mm |
| Positioning accuracy of X, Y and Z axles | ± 0.03 mm |
| Repeated positioning accuracy of X, Y and Z axles | ± 0.01 mm |
| Thickness of cutting material (according to material) | 0.2 - 25 mm |
| Driver model | Imported servo motor |
| Power requirement | 380V, 50/60 Hz |
| Working temperature | 0-45℃ |
| Continuous working time | 24 Hours |
| Machine weight | About 12000 Kgs |
| Total protection level of power supply | IP54 |
Cutting Thickness Reference Table
| Laser Power | Max cutting thickness | |||
| Carbon steel(mm) | Stainless steel(mm) | Aluminum (mm) | Brass (mm) | |
| 800W | 8 | 3 | 1 | 1 |
| 1000W | 12 | 4 | 2 | 2.5 |
| 1500W | 14 | 5 | 4 | 3 |
| 2000W | 16 | 6 | 5 | 4 |
| 3000W | 22 | 10 | 6 | 8 |
| Above parameter for reference only | ||||
Applied Materials
Stainless Steel, Carbon Steel, Alloy Steel, Silicon Steel, Spring Steel, Galvanize Plate, Pickled Plate, Brass Plate, Copper Plate, Aluminum Plate, Etc
Advantages of Fiber laser cutting machine
1. Compare with traditional laser, fiber laser is more environmental protection:
2. Much lower power consumption: fiber laser's photoelectric conversion efficiency 15times higher than traditional laser.
3. Higher laser spot quality: single-module laser source
4. Lower consumption: Spare parts are protective lens and nozzle only. Electric consumption from 6KW to 16KW with different laser power.
5. Highly automation:Adopts digital control, we can import file from AUTO CAD to cutting software directly,Any artifacts can be cut, moreover there is intelligent typesetting function, thus can save raw material costs to the greatest extent.
6. High cutting efficiency:Due to the transmission properties of laser, laser cutting machine has equipped with many sets of CNC work bench to realize numerical control. You only need to change the CNC program to cut different shape, as well as for two-dimensional cutting, and three-dimensional cutting.
Detailed Images
 | Name:Machine body and accessoriesa.600℃ heat treatment, 24 hours cooling in the oven, accurate CO2 protection welding, to make sure 20 years usage without deformation. b.Synchronous X/Y/Z axes: The Z-axis can run 150mm, suitable for cutting many varieties of metal sheets. c.High quality guarantees its durability and easier maintenance. |
| Name:AC servo motor & driverThe imported servo motor (Y-axis driven by two servo motors) along with the sophisticated planetary reducer ensures steady, precise and reliable drive. |  |
 | Name:Precision Linear GuidesAdvanced cutting system, laser power and servo movement suit each other perfectly, imported high precision gear and rack drive system, exchangeable double work table, to ensure higher processing speed and accuracy.. |
| Name:Cutting headThe contactless cutting head has the function of auto height tracking and anti-collision, which greatly improves cutting speed, smoothness and cutting accuracy under the same output power. In a word, the cutting efficiency can be increased. |  |
 | Name:Laser sourcefast speed,high precision cutting line, and smooth cutting edge |
Cutting Samples
Training
After-sales service, from training to machine installation (3 ways):
1.Training video and user's manual in English to be offered for installation, operation, maintenance and trouble-shooting, and technical guide to be offered by e-mail, fax, telephone/whatsapp /skype//and so on, when you meet some problems of installation, using or adjusting.
2.Your company can arrange technologist come our factory to learn basic knowledge of equipment and operating essentials , sufficient training time about 3-5days , the training content is as follows:
a) Common drawing software training ;
b) Machine on and off training procedures ;
c) The significance of control panel and software parameters, parameters range’s setting
d) Basic cleaning and maintenance of the machine ;
e) Common Hardware Troubleshooting ;
f) Caution of operation.
3.Door-to-door instruction training service. visa, traveling expenses and accommodation will be at customer's cost. It's better to arrange a translator for both of our engineers during the training period. Training Time: 3-5days.
Warranty
a).1Year for the whole machine(Man-made Damage is negotiated.).
b).Laser source 2 Years warranty
c).Lifelong maintenance and spare parts supply
d).Free training for operation staffs. (engineer can go abroad is negotiated.)
