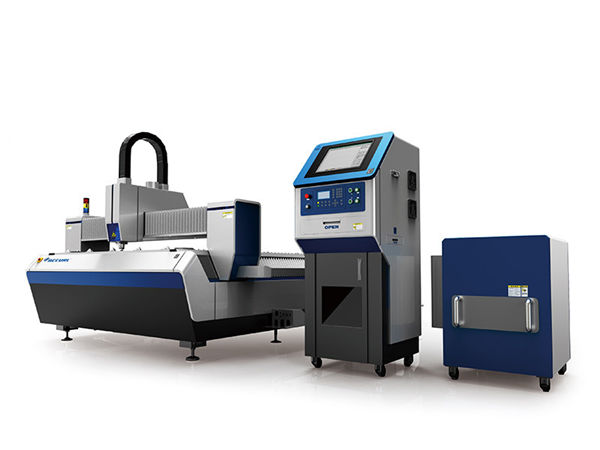

cnc sheet metal cutting machine / tube cutter machine

Product Details

Certification: CE
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: Negotiable
Packaging Details: 1*40GP container
Delivery Time: 30days
Payment Terms: L/C, D/A, T/T, D/P, Western Union

Detailed Product Description

Application::	All Metal Material	Cutting Thickness:	SS Upto 12mm, MS Upto 22cm
Laser Type::	Imported Original Fiber Laser	CNC Or Not:	Yes
Min.line Width:	0.1mm	Graphic Format Supported::	AI, BMP, DST, DWG, DXF, DXP, LAS, PLT
Max Acceleration:	1.0G	Repeating Accuracy::	+/-0.03mm
Operating Temperature::	0°C-45°C	Cooling Mode:	Water Cooling
Weight(kg):	8600	Voltage::	AC380V±10% 50HZ(60HZ)
Cutting Area:	3000x1500mm	Product:	Cnc Sheet Metal Cutting Machine / Tube Cutter Machine

Advantage of fiber laser machine

1) Fiber laser cutting is the fastest process for thin sheet metal.
2) A “clean cut” surface quality is obtained.
3) Reflective materials like aluminium,copper and brass can be cut with ease.
4) Parts process cost is very low.
5 ) Little to no maintenance costs.
6) Consumable part cost is low. The only parts that need to be changed are nozzles, ceramics andprotection glasses over long periods. There are no other consumable costs.
7) Resonator life is over 100,000 working hours.
8) Double ball screw close-loop system and imported open-type CNC system, ensure high
accuracy and high working efficiency during high speed cutting.
9) Standard collocation of 2KW fiber laser and optional 500W-4000W fiber laser
Standard collocation of 500W fiber laser and optional 1000W IPG or N-light fiber.
Low operating and maintenance costs. Achieve long-term return on investment and revenue maximization.
10) Enclosure design conforms to CE standard for reliable and safe processing.
Pallet changer is convenient for material uploading and unloading, improving efficiency.
Open structure is easy and convenient for material uploading and unloading.
Drawer collecting device makes receiving materials more convenient.
11) Aiming at high speed cutting, strengthened welded machine body after 2 times of aging process, ensuringlong-term accuracy and stability of performance.

Main Features of Fiber laser cutting machine

1) Adopting World Famous Germany Dlaser Fiber laser source and USA Laser Mech cutting head &
Dynamic Focus System,it can cut and punch different kind of metal material with high precision
and high speed.
2) Since laser is transmitted by fiber, it is no need to maintenance or adjusts the laser optical path.
It greatly reduces the machines fault rate and prolongs the working life.
3) Large format cutting area meets the demands of various kinds of metal processing.

Specification

Laser source medium	Fiber
Cutting range (L * W)	3000 mm × 15000 mm
Z axle stroke	250 mm
Max. positioning speed	120 m/min
X,Y axle Max. accelerate speed	1.0G
Cooling form	Water cooling
Laser wavelength	1070nm
Output power of laser source	500W/1000W / 1500W / 2000W 2500W / 3000W / 4000W (Optional)
Min. cutting gap	≤ 0.1 mm
Positioning accuracy of X, Y and Z axles	± 0.03 mm
Repeated positioning accuracy of X, Y and Z axles	± 0.01 mm
Thickness of cutting material (according to material)	0.2 - 25 mm
Driver model	Imported servo motor
Power requirement	380V, 50/60 Hz
Working temperature	0-45℃
Continuous working time	24 Hours
Machine weight	About 8600 Kgs
Total protection level of power supply	IP54

Cutting Thickness Reference Table

Laser Power	Max cutting thickness
Laser Power	Carbon steel(mm)	Stainless steel(mm)	Aluminum (mm)	Brass (mm)
700W	8	3	1	1
1000W	12	4	2	2.5
1500W	14	5	4	3
2000W	16	6	5	4
3000W	22	10	6	8
Above parameter for reference only

Application Industries

Suitable for aerospace technology, aircraft manufacturing, rocket manufacturing, robot manufacturing, elevator manufacturing, ship manufacturing, sheet metal cutting, kitchen furniture, electronic components, automotive parts, cooling, and ventilation pipes, signs, metal and other metal parts processing industry

Detailed Images

	Name:Machine body and accessories a.600℃ heat treatment, 24 hours cooling in the oven, accurate CO2 protection welding, to make sure 20 years usage without deformation. b.Synchronous X/Y/Z axes: The Z-axis can run 150mm, suitable for cutting many varieties of metal sheets. c.High quality guarantees its durability and easier maintenance.
Name:AC servo motor & driver The imported servo motor (Y-axis driven by two servo motors) along with the sophisticated planetary reducer ensures steady, precise and reliable drive.
	Name:Precision Linear Guides Advanced cutting system, laser power and servo movement suit each other perfectly, imported high precision gear and rack drive system, exchangeable double work table, to ensure higher processing speed and accuracy..
Name:Cutting head The contactless cutting head has the function of auto height tracking and anti-collision, which greatly improves cutting speed, smoothness and cutting accuracy under the same output power. In a word, the cutting efficiency can be increased.
	Name:Laser source fast speed,high precision cutting line, and smooth cutting edge

Name:Machine body and accessories

a.600℃ heat treatment, 24 hours cooling in the oven, accurate CO2 protection welding, to make sure 20 years usage without deformation.
b.Synchronous X/Y/Z axes: The Z-axis can run 150mm, suitable for cutting many varieties of metal sheets.
c.High quality guarantees its durability and easier maintenance.

Name:AC servo motor & driver

The imported servo motor (Y-axis driven by two servo motors) along with the sophisticated planetary reducer ensures steady, precise and reliable drive.

Name:Precision Linear Guides

Advanced cutting system, laser power and servo movement suit each other perfectly, imported high precision gear and rack drive system, exchangeable double work table, to ensure higher processing speed and accuracy..

Name:Cutting head

The contactless cutting head has the function of auto height tracking and anti-collision, which greatly improves cutting speed, smoothness and cutting accuracy under the same output power. In a word, the cutting efficiency can be increased.

Name:Laser source

fast speed,high precision cutting line, and smooth cutting edge

Training

1.Training video and user's manual in English to be offered for installation, operation, maintenance and trouble-shooting, and technical guide to be offered by e-mail, fax, telephone/whatsapp /skype//and so on, when you meet some problems of installation, using or adjusting.

2.Your company can arrange technologist come our factory to learn basic knowledge of equipment and operating essentials , sufficient training time about 3-5days , the training content is as follows:
a) Common drawing software training ;
b) Machine on and off training procedures ;
c) The significance of control panel and software parameters, parameters range’s setting
d) Basic cleaning and maintenance of the machine ;
e) Common Hardware Troubleshooting ;
f) Caution of operation.
3.Door-to-door instruction training service. visa, traveling expenses and accommodation will be at customer's cost. It's better to arrange a translator for both of our engineers during the training period. Training Time: 3-5days.

Packaging and shipping

1.Our wooden case is after fumigation treatment.Needn’t timber inspection,saving shipping time.
2.All the spare parts of the machine were covered by some soft materials,mainly using pearl wool.
Avoiding all damages that could happen in the delivery process.Then we’ll covered plastic wrap out it tightly,make sure intact of the covered soft materials,also avoiding Waterproof and rust proof.
3.The outmost is wooden case with fixed formwork.
4.The bottom of the wooden case has firm iron jack,convenient to Handling and transport.
