Detailed Product Description
| Application:: | All Metal Material | Cutting Thickness: | SS Upto 10mm, MS Upto 22cm |
|---|---|---|---|
| Laser Type:: | Fiber | CNC Or Not:: | Yes |
| Cooling Mode:: | Water Cooling | Control Software:: | Cypcut |
| Graphic Format Supported:: | AI, BMP, DST, DWG, DXF, DXP, LAS, PLT | Place Of Origin:: | China |
| Model Number:: | TY-3015DG | After-sales Service Provided:: | Engineers Available To Service Machinery Overseas |
| Repeating Accuracy:: | +-0.03mm | Operating Temperature:: | 0°C-45°C |
| Working Humidity:: | 5%-95% | Processing Range: | 20-130mmx3000mm |
| Voltage:: | AC380V±10% 50HZ(60HZ) | Cutting Area: | 3000*1500mm Standard, Bigger Can Be Customized |
Machine body
1. Our Machine body with 8mm steel structure, 600℃ heat treatment, Precise welding, to make sure 20 years usage without deformation.
2. Gantry with magnesium alloy casting, Strong stability without deformation, Fast movement.
3. High efficiency zoning smoking system at both sides of machine body, Strong segmented dust and smoking collection, it will reduce harm to worker.
4. Imported precision flange reducer and servo motor, Fast running speed.
5. 70 blades and 6 slide bars on the machine bed, with close blades to reduce machine warning, slide bars working with cylinders to upload and download sheets easily.
6. Flexible loading box can be opended front and both sides which is convinient for machine working condition.
Advantage of fiber laser machine
1) Excellent beam quality: Smaller focus diameter and high work efficiency, high quality.
2) High cutting speed: Cutting speed is more than 60m/min
3) Stable running: Adopting the top world import fiber lasers, stable performance, key parts can
reach 100,000 hours;
4) High efficiency for photoelectric conversion: Compare with CO2 laser cutting machine,
fiber laser cutting machine has three times photoelectric conversion efficiency
5) Low cost & Low maintenance: Save energy and protect environment. Photoelectric conversion rate
is up to 25-30%. Low electric power consumption, it is only about 20%-30% of traditional CO2 laser
cutting machine. Fiber line transmission no need reflect lens, save maintenance cost;
6) Easy operations: fiber line transmission, no adjustment of optical path;
7) Super flexible optical effects: Compact design, easy to flexible manufacturing requirements.
Specification
| Laser source medium | Fiber |
| Cutting range (L * W) | 3000 mm × 1500 mm |
| Z axle stroke | 250 mm |
| Max. positioning speed | 120 m/min |
| X,Y axle Max. accelerate speed | 1.0G |
| Cooling form | Water cooling |
| Laser wavelength | 1070nm |
| Output power of laser source
| 500W/1000W / 1500W / 2000W 2500W / 3000W / 4000W (Optional) |
| Min. cutting gap | ≤ 0.1 mm |
| Positioning accuracy of X, Y and Z axles | ± 0.03 mm |
| Repeated positioning accuracy of X, Y and Z axles | ± 0.01 mm |
| Thickness of cutting material (according to material) | 0.2 - 25 mm |
| Driver model | Imported servo motor |
| Power requirement | 380V, 50/60 Hz |
| Working temperature | 0-45℃ |
| Continuous working time | 24 Hours |
| Machine weight | About 12000 Kgs |
| Total protection level of power supply | IP54 |
Detailed Images
| Name: Machine body and accessorie a.600℃ heat treatment, 24 hours cooling in the oven, accurate CO2 protection welding, to make sure 20 years usage without deformation. |

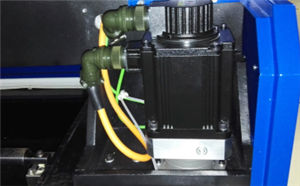

| Name:AC servo motor & driver The imported servo motor (Y-axis driven by two servo motors) along with the sophisticated planetary reducer ensures steady, precise and reliable drive. |
|

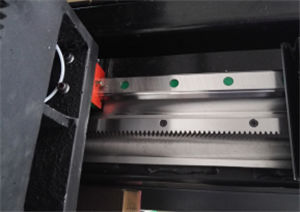

| Name:Precision Linear Guides Advanced cutting system, laser power and servo movement suit each other perfectly, imported high precision gear and rack drive system, exchangeable double work table, to ensure higher processing speed and accuracy.. |

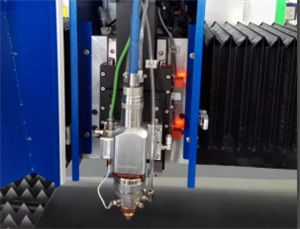

| Name:Cutting head The contactless cutting head has the function of auto height tracking and anti-collision, which greatly improves cutting speed, smoothness and cutting accuracy under the same output power. In a word, the cutting efficiency can be increased. |
|

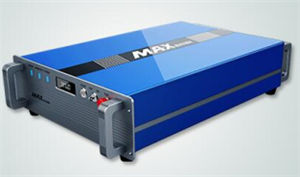

| Name:Laser source fast speed,high precision cutting line, and smooth cutting edge |
Cutting Samples
Training
After signing the contract , your company can arrange technologist come our factory to learn basic knowledge of equipment and operating essentials , sufficient training time about 1-3 days , the training content is as follows:
a) Common drawing software training ;
b) Machine on and off training procedures ;
c) The significance of control panel and software parameters, parameters range’s setting;
d) Basic cleaning and maintenance of the machine ;
e) Common Hardware Troubleshooting ;
f) Caution of operation,
Warranty
a).1Year for the whole machine for pipe fiber laser cutting machine. (Man-made Damage is negotiated.).
b).Laser source 2 Years warranty
c).Lifelong maintenance and spare parts supply
d).Free training for operation staffs. (engineer can go abroad is negotiated.)
