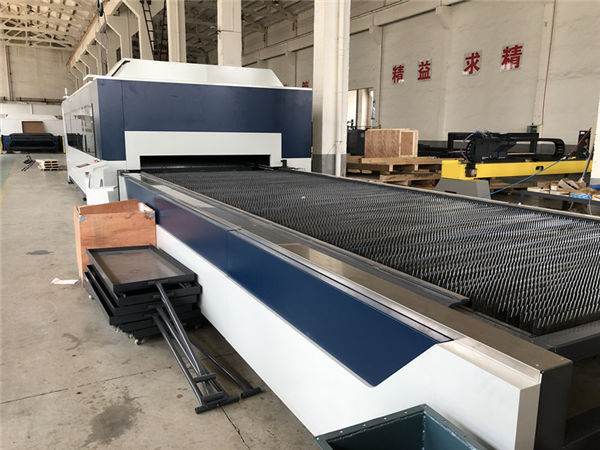

fiber laser cutting machine 3000mm × 1500mm

Product Details

---

Certification: CE
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: Negotiable
Packaging Details: 1*40GP container
Delivery Time: 30days
Payment Terms: L/C, D/A, T/T, D/P, Western Union

Detailed Product Description

---

Application::	All Metal Material	Cutting Thickness:	SS Upto 12mm, MS Upto 22cm
Laser Type::	Imported Original Fiber Laser	Max Cutting Thickness:	20mm/CS; 10mm/SS
Min.line Width:	0.1mm	Control Software::	Cypcut
Graphic Format Supported::	AI, BMP, DST, DWG, DXF, DXP, LAS, PLT	Brand Name::	TAIYI LASER
Repeating Accuracy::	+/-0.03mm	Operating Temperature::	0°C-45°C
Cooling Mode:	Water Cooling	Laser Source:	IPG/Nlight/Raycus/Max
Voltage::	AC380V±10% 50HZ(60HZ)	Cutting Area:	3000x1500mm

Laser Machining Process Iron Cutter Machine , Lazer Cutter , Metal Laser cutting machine

Advantage of fiber laser machine

---

1) Excellent beam quality: Smaller focus diameter and high work efficiency, high quality.

2) High cutting speed: Cutting speed is more than 60m/min

3) Stable running: Adopting the top world import fiber lasers, stable performance, key parts can

reach 100,000 hours;

4) High efficiency for photoelectric conversion: Compare with CO2 laser cutting machine,

fiber laser cutting machine has three times photoelectric conversion efficiency

5) Low cost & Low maintenance: Save energy and protect environment. Photoelectric conversion rate

is up to 25-30%. Low electric power consumption, it is only about 20%-30% of traditional CO2 laser

cutting machine. Fiber line transmission no need reflect lens, save maintenance cost;

6) Easy operations: fiber line transmission, no adjustment of optical path;

7) Super flexible optical effects: Compact design, easy to flexible manufacturing requirements.



Feature & Property

---

Adopting World Famous Germany Dlaser Fiber laser source and USA Laser Mech cutting head & Dynamic Focus System , it can cut and punch different kind of metal material with high precision and high speed.
Since laser is transmitted by fiber, it is no need to maintenance or adjusts the laser optical path. It greatly reduces the machines fault rate and prolongs the working life.
Large format cutting area meets the demands of various kinds of metal processing.

Since laser is transmitted by fiber, it is no need to maintenance or adjusts the laser optical path. It greatly reduces the machines fault rate and prolongs the working life.
Since laser is transmitted by fiber, it is no need to maintenance or adjusts the laser optical path.It greatly reduces the machines fault rate and prolongs the working life.

Cutting Thickness Reference Table

---

Cutting materials

---

The fiber laser can cut all kinds of non ferrous metals, such as copper,aluminum,this high reflective materials, and tungsten,can also cut stainless steel,carbon steel, manganese steel,galvanized sheet,aluminum platform gold alloy plate, and other rare metals.

Application industry

---

The fiber laser cutting machine can be widely used in aerospace, aviation, electronics, elevators, medical equipment, kitchen electrical, auto parts, electrical equipment, gold plated chassis cabinets,mechanical equipment,lighting hardware,advertising signs, display equipment,all kinds of metal products, sheet metal cutting processing and other industries.

Cutting Samples

---

Pre-sale service

---

1. Free sample cutting
For free sample cutting/testing, please send us your CAD file, we will do cutting here and make video to show you the cutting ,or send sample to you check cutting quality.
2. Customized machine design
According to customer’s application, we may revise our machine accordingly for customer’s convenience and high production efficiency.

Service after sales

---

A. Machine will be supplied with training video and user's manual in English for installation, operation, maintenance and trouble-shooting, and shall give technical guide by e-mail, fax, telephone, skype….
B. We offer technician to customer's site for installation and training, customer shall cover visa, ticket, local living cost.
C. Customer may come to our factory for training. We will offer training of installation, operation, machine trouble-shooting, and maintenance.
During training in our workshop, we offer free training and living cost for 7 days, limit 2 people.

Warranty

---

a).1Year for the whole machine(Man-made Damage is negotiated.).
b).Laser source 2 Years warranty
c).Lifelong maintenance and spare parts supply
d).Free training for operation staffs. (engineer can go abroad is negotiated.)
