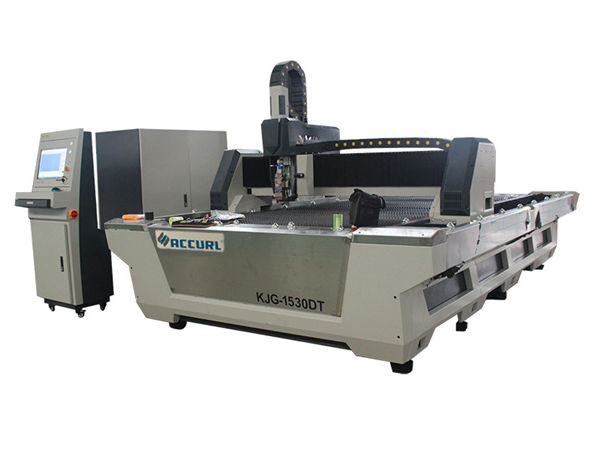

fiber laser cutting machine with protective cover and exchange table

fiber laser cutting machine with protective cover and exchange table

Product Details

Certification: CE
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: Negotiable
Packaging Details: 1*40FR container
Delivery Time: 30days
Payment Terms: L/C, D/A, T/T, D/P, Western Union
Supply Ability: 150sets

Product Description

Application:All Metal MaterialCutting Thickness:SS Upto 10mm, MS Upto 22cm
Laser Type:FiberCabient:Bule
Cooling Mode:Water CoolingGraphic Format Supported:AI, BMP, DST, DWG, DXF, DXP, LAS, PLT
After-sales Service Provided:Engineers Available To Service Machinery OverseasRepeating Accuracy:+-0.03mm
Operating Temperature:0°C-45°CVoltage:AC380V±10% 50HZ(60HZ)

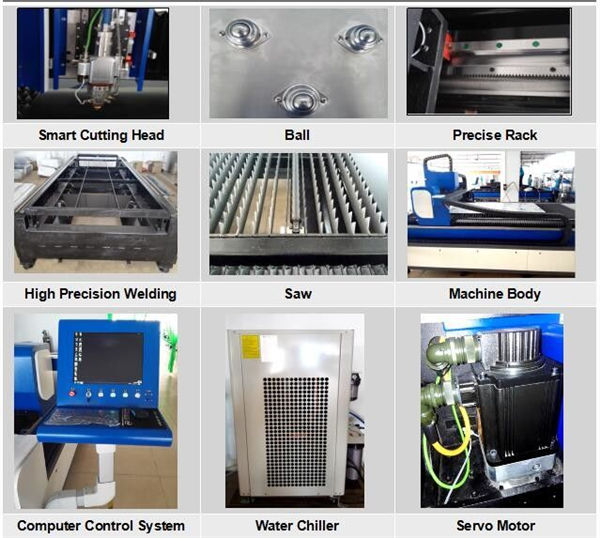

Machine body

1. Our Machine body with 8mm steel structure, 600℃ heat treatment, Precise welding, to make sure 20 years usage without deformation.
2. Gantry with magnesium alloy casting, Strong stability without deformation, Fast movement.
3. High efficiency zoning smoking system at both sides of machine body, Strong segmented dust and smoking collection, it will reduce harm to worker.
4. Imported precision flange reducer and servo motor, Fast running speed.
5. 70 blades and 6 slide bars on the machine bed, with close blades to reduce machine warning, slide bars working with cylinders to upload and download sheets easily.
6. Flexible loading box can be opended front and both sides which is convinient for machine working condition.

Specification

Laser SourceIPG/Raycus/Nlight
Machine Bodygantry structure
Working TravelHigh Precision Ball screw numerical control table with feeding device
Max running speed80m/min
X/Y location precision0.03mm/m
Power Supply380V 50Hz/60Hz
X/Y repeated location precision±0.03mm
Running Temperature0°C-45°C
Max Acceleration1.0G
Machine gross power<16KVA
Applied MaterialsThin mild steel, stainless steel and other kinds of metallic sheets
Cutting Area3000mm*1500mm/4000mm*2000mm/6000mm*2000mm
Total Weight4500KGS

Training

After signing the contract , your company can arrange technologist come our factory to learn basic knowledge of equipment and operating essentials , sufficient training time about 1-3 days , the training content is as follows:
a) Common drawing software training ;
b) Machine on and off training procedures ;
c) The significance of control panel and software parameters, parameters range’s setting;
d) Basic cleaning and maintenance of the machine ;
e) Common Hardware Troubleshooting ;
f) Caution of operation

Product Advantage

This fiber laser cutting machine has high speed and efficiency.
1.Plate and tube fiber laser cutting combination,one machine dual use;
2.Germany Atlanta Double Gear and Rack fiber laser cutting machine transmission system, high cutting efficiency;
3.Auto clap,fast speed,save strength,no harm to working piece;
4.Precision rotary,rotate angle precious,cutting in coherence;
5.Small focus dot,small cutting gap,save materials;
6.No dregs,cutting edge smooth as silk,no need second processing,save strength.

FAQ

Q1.How do you get the best price?
As you may know, the different type machine apply to different materials, and the different model apply to different materials.

Q2.In case of the failure, how to do?
Call us---- our engineers are online for 24 hours and ready to serve you.
Replacement of damaged parts for free--For more information, please contact us.
The CD and operation manual-----it shows the most common failure in working processing and how to solve the problems.
