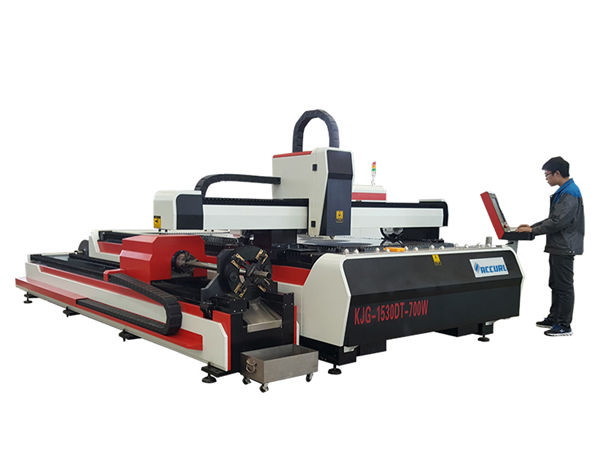

fiber laser metal cutting machine 500w 800w 1kw 800mm/s operating speed

Product Details

Certification: CE, FDA, IOS9001
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: USD
Packaging Details: Standard Wood Packing
Delivery Time: 30-45 Days
Payment Terms: T/T, Western Union, MoneyGram, L/C, D/P
Supply Ability: 100 Sets Per Month

Detailed Product Description

Model:	RL-P5050-500	Laser Power:	500W
Laser Source:	Max/Raycus/Ipg	Maximum Processing Size:	500500mm// 600600mm
Maximum Operating Speed:	800mm/s	Control System:	Cypcut
Material Cutting Thickness:	0.2-30mm	Electric Power Supply:	AC380V 50Hz/5KW
Positioning Accuracy:	±0.05mm/500mm	HS Code:	8456110090
Transport Package:	Wooden Carton	Weight:	1100KG
Repeat Position Accuracy:	±0.05mm/500mm	Laser Type:	Fiber Laser

Application Materials

Fiber Laser Cutting Equipment is suitable for metal cutting with Stainless Steel Sheet, Mild Steel Plate, Carbon Steel Sheet, Alloy Steel Plate, Spring Steel Sheet, Iron Plate, Galvanized Iron, Galvanized Sheet, Aluminum Plate, Copper Sheet, Brass Sheet, Bronze Plate, Gold Plate, Silver Plate, Titanium Plate, Metal Sheet, Metal Plate, Tubes and Pipes, etc

Machine parameters for laser generator

Item	Parameters
Laser type	Fiber laser
Power	500W/1000W/1500W/2000W/3000W/4000W/6000W
Wave length	1070-1080nm
Electro-optical conversion efficiency	25-30%
XYZ Route	3025mm/1525mm/100mm
Material Cutting thickness	0.2-8mm
Cutting seam width	0.1-0.2mm
Repeat position accuracy	±0.05mm/500mm
Positioning accuracy	±0.05mm/500mm
Max.Moving Speed	60000mm/min
Max.Accerlation speed	25m/min
Max.loading weight	500kg
Machine weight	2300kg
Required Power	220V 50Hz/60Hz
Machine size(LWH)	4500mm2450mm1700mm

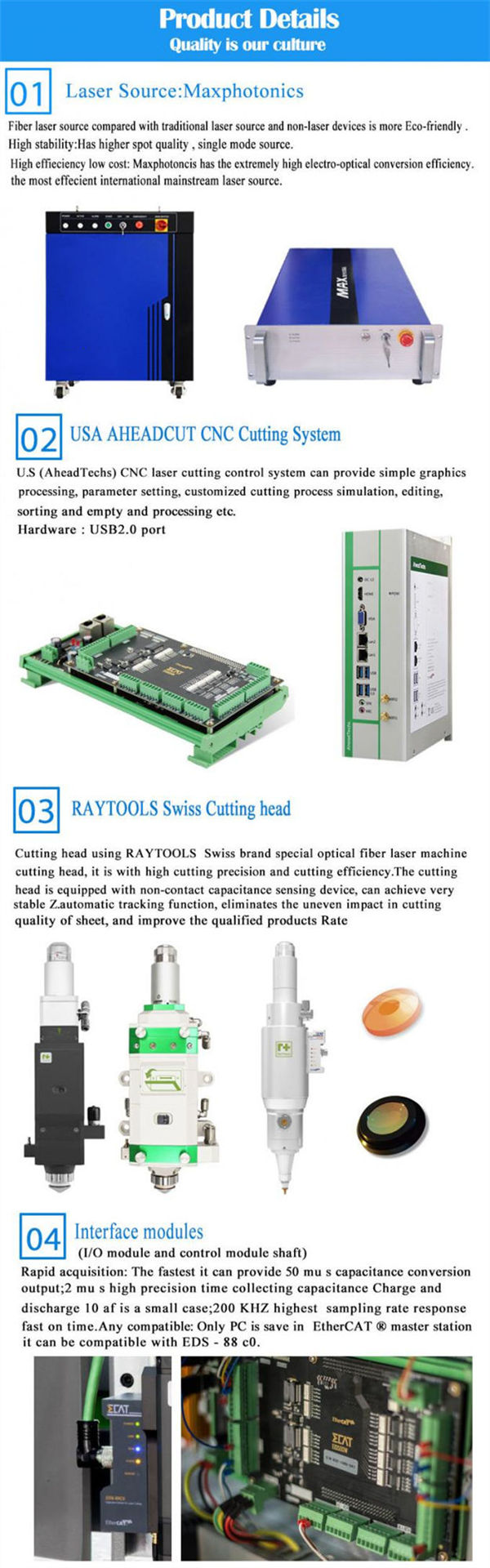

Configuration of Fiber Laser Cutter

	Description	Qty	Original	Brand
1	Fiber laser source (500W/800W)	1SET	China	MAX
2	Laser cutting head	1PC	Switzerland	RAYTOOLS
3	Machine bed and accessories	1SET	China
4	Electric control	1SET		OMRON,Schneider
5	Gas circuit control	1SET	Japan	SMC
6	Precise Rack	Each 3SETS	China
7	Precise linear guide rail	Each 3SETS	Taiwan	PMI
8	Planetary Gear	3SET	China
9	Machine bed accessories	1SET	China
10	Digital cutting system	1SET	USA	AHEADCUT
11	Industrial control computer	1SET	China	AHEADCUT
12	Communication servo and driver	4SETS	China
13	Cooling Unit	1SET	China
14	Waste recycling equipment	1SET	China

Equipment Work and Environmental Requirements

Requirement

Power supply: regulated stable power supply: (recommended)

(1)rated output voltage: 220 v

(2) voltage frequency: 50 hz

(3) the stability of the two phase voltage + 5%

(4) the output voltage adjustment rate: < 2%

Cutting with auxiliary gas:

Clean, dry compressed air and high purity oxygen (O2) and nitrogen (N2) ,purity no less than 99.9% purity

Cutting material

Sheet material is even, smooth;Clean the surface

The compressed air supply device

(1) the rated pressure: 14 bar

(2)Capacityt: 1 m3

Theory Cutting parameter

Power(W)	Material	Thickness(mm)	Cutting speed(m/min)	Gas
800	Stainless steel	1	8-9	N2
		2	5-6	N2
		3	1.8-2	N2
		4	1.2-1.3	N2
800	Carbon steel	1	8-10	O2
		2	4-5	O2
		3	2.8-3	O2
		4	1.4-1.8	O2
		5	1.2-1.5	O2
		6	0.9-1.1	O2
		8	0.6-0.7	O2

Power(W)	Material	Thickness(mm)	Cutting speed(m/min)	Gas
500	Stainless steel	1	6-8	N2
		2	2-2.2	N2
		3	0.6-0.8	N2
500	Carbon steel	1	7-8	O2
		2	3.5-4	O2
		3	2.8-3.2	O2
		4	1.3-1.5	O2
		5	0.9-1.1	O2
		6	0.6-0.7	O2
