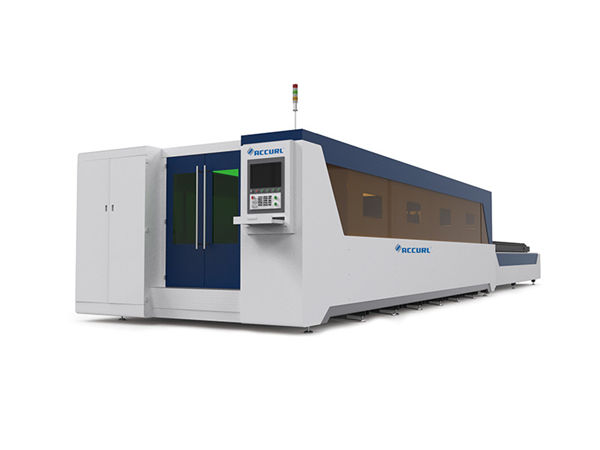

fiber laser tube cutting machine for mild steel / stainless steel

Product Details

Certification: ISO9001:2008
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: NEGOTIATION
Packaging Details: WOODEN CASE
Delivery Time: 15 DAYS
Supply Ability: 2000 UNITS

Detailed Product Description

Products Name:	Fiber Laser Cutting Machine	Laser Type:	Fiber Laser
Laser Application:	Laser Cutting	Application Material:	Metal
Working Area:	3000*1500mm	CNC Or Not:	Yes
Cooling Mode:	Water Cooling

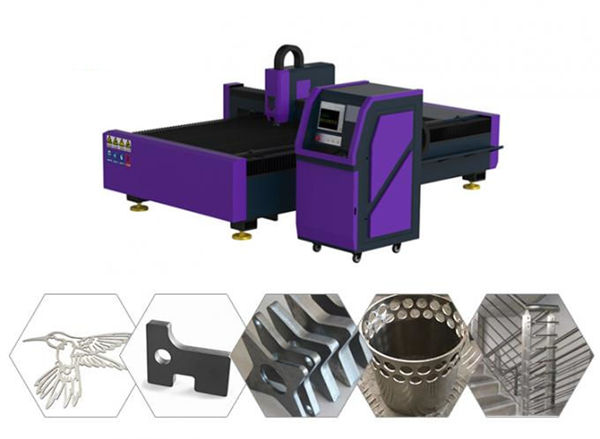

Description of laser cutting machines

The whole fiber tube and plate laser cutting machine consist of machine tool, motion parts, electrical equipment control parts, and other assist parts. Via control system to operation three axis motion parts, so it can drive to fiber laser cutting head achieve a stable, accurate, and high speed moving; X and Y axis adopt by imported with original packaging high quality and precision HIWIN linear guide rail, working table adopt by square pipe to welding the overall machine, stress relief annealing treat, the max load-bearing of mesa could get 500 KG, it also has universal ball bearing, machine external set up peripheral clamping device, use full enclosed dust proof device, photoelectric sensor, and other precise positioning parts to ensure accuracy of the transmission.

Advantage

1. Controller with a touch screen operating system, easy to operate.
2. 3HP high-power water chillers to keep the laser head always in a comfortable working temperature.
3. 500-1500W Maxphotonics fiber laser source, and the photoelectric conversion rate is high.
4. Automatic focus laser cutting head (metal sensor) selection of well-known brands USA , with high sensitivity, good stability.
5. Japan's servo motor and drive to improve the cutting speed and stability.
6. Combination of ball movement and feed system.

^{Technical parameter}

^Item	^Parameter
^{Laser type}	^{Fiber laser}
^{Wave length}	^1070-1080nm
^{Electro-optical conversion efficiency}	^25-30%
^{XYZ Route}	^{3025mm/1525mm/100mm}
^{Material Cutting thickness}	^0.2-8mm
^{Cutting seam width}	^0.1-0.2mm
^{Repeat position accuracy}	^{±0.05mm/500mm}
^{Positioning accuracy}	^{±0.05mm/500mm}
^{Max.Moving Speed}	^60000mm/min
^{Max.Accerlation speed}	^0.8g
^{Max.loading weight}	^500kg
^{Machine weight}	^2300kg
^{Required Power}	^{220V 50Hz/60Hz}
^{Machine size(LWH)}	^{4500mm2450mm1700mm}

Applied Fields of laser cutting machine

Metal tube cutting machine is professional in cutting varies metal tube and sheet.
Cutting material: stainless steel, carbon steel, mild steel, iron, galvanized steel, titanium steel, silicon steel, brass, aluminum, titanium alloy, brass, copper, silver, gold, etc.

Pre-sale service

1. Free sample cutting,
For free sample cutting/testing, please send us your CAD file, we will do cutting here and make video to show you the cutting ,or send sample to you check cutting quality.
2. Customized machine design
According to customer’s application, we may revise our machine accordingly for customer’s convenience and high production efficiency.

Service after sales

A. Machine will be supplied with training video and user's manual in English for installation, operation, maintenance and trouble-shooting, and shall give technical guide by e-mail, fax, telephone, skype….
B. We offer technician to customer's site for installation and training, customer shall cover visa, ticket, local living cost.
C. Customer may come to our factory for training. We will offer training of installation, operation, machine trouble-shooting, and maintenance.
During training in our workshop, we offer free training and living cost for 7 days, limit 2 people.

Warranty

a).1Year for the whole machine(Man-made Damage is negotiated.).
b).Laser source 2 Years warranty
c).Lifelong maintenance and spare parts supply
d).Free training for operation staffs. (engineer can go abroad is negotiated.)

FAQ

Q1: How can I get the best machine for me?
You can tell us your working material, detail work by picture or vedio so that we can judge whether our machine can meet your need or not. Then we can give you the best model depends on our experience.

Q2: This is the first time I use this kind of machine, is it easy to operate?
We will send you manual and guide vedio in English, it can teach you how to operate the machine. If you still can not learn how to use it, we can help you by "Teamviewer" online help software.Or we can talk by phone, email or other contact ways.

Q3: If the machine has problem in my place, how could I do?
We could send free parts to you in warranty period if machines have any problem under "normal use".

Q4:Do You Arrange Shipment For The Machines?
Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or their agents.
