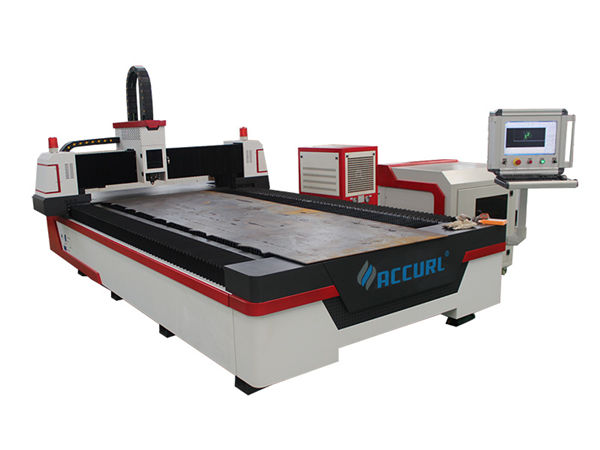

fiber optical path industrial laser cutting machine compact with automatic nesting system

Product Details

Certification: ISO9001:2008

Payment & Shipping Terms:

Minimum Order Quantity: 1

Price: negotiation

Packaging Details: Standard Wooden Case

Delivery Time: 7-15 days

Supply Ability: 1000 units / month

Detailed Product Description

Product Name:	Fully Enclosed Fiber Laser Cutting Machine	Fiber Laser:	1000W
Working Area:	3000*1500mm	Accuracy:	±0.03-0.05mm
Power Supply:	380v	Warranty:	1 Year

Main Features

It is with full cover can use for both cutting metal sheet and pipes fiber laser cutting machine.Adopt Maxphotonics laser source and high precision rack and linear guide to transmit.
Can cut lines and holes with different from different directions on the pipe.
Can cut inclined section at the end of the pipe.
Can cut beanch pipe intersected with the main circular pipe.
Can cut square hole,waist-shaped hole and circular hole on the pipe.
Can truncate the pipe.
Can cut all kinds of graphics on the surface of the square pipe.
Can cut different sizes metal sheets.
Can cut holes on the molding box.

Characteristics

1, High speed, high precision, high efficiency and low cost
2, Easy on operation, fiber optical path, without tediously adjustment on optical path
3, Compact structure, good sealing, strongly adaptable to changes in the environment.
4, With the perfect automatic nesting system which can save time, save the materials, the sheet utilization ratio up to 95%

Techinical Parameters

^{LASER SOURCE}	^{Maxphotonics LASER}
^{CUTTING HEAD}	^{RAYTOOLS BT-240}
^{DRIVE MODE}	^{DUAL DRIVE}
^TRANSMISSION	^{TAIWAN APEX}
^{GUIDE RAIL}	^{TAIWAN TPI}
^{SERVO MOTOR AND DRIVER}	^{4 SETS OF YASKAWA FROM JAPAN}
^REDUCER	^{FRANCE MOTOREDUCER}
^{WATER CHILLER}	^TEYU
^{CONTROL SYSTEM}	^{CYPCUT FROM SHANGHAI, CHINA}
^COMPUTER	^{INDUSTRY COMPUTER}
^{POWER REQUIREMENT}	^{3 PHASE AC 380V 50HZ}
^{GROSS WEIGHT}	^3.05MTS
^{TERMINAL ROW}	^{FRANCE SCHNEIDER}
^RELAY	^{FRANCE SCHNEIDER}
^{SOLENOID VALUE}	^{SMC JAPAN}
^{PROPORTIONAL VALUE}	^{JAPANESE SMC}
^{WORKING SIZE}	^{3000*1500 MM}

The Accessory Parts

1.High precision screw imported CNC fiber laser cutting machine. It use Maxphotonics fiber laser laser
fiber laser source is small and light, which helps to move easily. Its easy integration, stable performance and good quality are well guaranteed.
2. Special Tube Fiber Laser Cutter Head and Automatic Following System.

The samples & application

Fully Enclosed Fiber Laser Cutting Machine for metal pipes can be applied for Different profiles,including round pipes, square tubes, rectangular tubes or triangular tubes,etc,of carbon steel, stainless steel,etc;
Suitable for aerospace technology, aircraft manufacturing, rocket manufacturing, robot manufacturing, elevator manufacturing, ship manufacturing, sheet metal cutting, kitchen furniture, electronic components, automotive parts, cooling, and ventilation pipes, signs, metal and other metal parts processing industry, sports industry.
