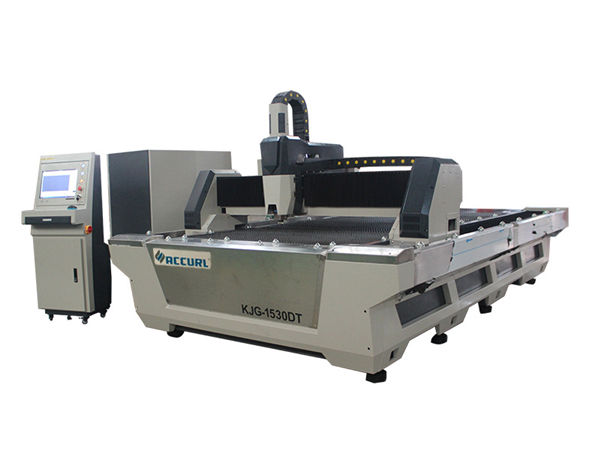

high accuracy industrial laser cutting machine 1000w for carbon steel cutting

Product Details

Certification: CE

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET

Price: USD Negotiable

Packaging Details: Plywood wooden box with metal belt

Delivery Time: 15 - 30 Work Days

Payment Terms: T/T, D/A

Supply Ability: 2000 Units per year

Detailed Product Description

Laser Type:	Fiber Laser	Cutting Area:	1500*3000mm
Cooling Mode:	Water Cooling	Application:	Metal Material Cutting
Working Table:	Blade Table	Laser Power:	1000W
Positioning Accuracy:	±0.05 Mm	Z Axis Path:	100mm
Frequency:	50/60Hz	Cutting Speed:	Adjustable
Control Software:	Cypcut	Product Name:	1000W Industrial Laser Cutting Machine High Accuracy For Carbon Steel Cutting

Fiber Metal Laser Cutting Machine Features

The High-power laser cutting machine with the highest precision in China, it can cut metal door design with big size and perfectly cut up to 22mm mild steel,12mm stainless steel,10mm aluminum,5mm brass,4mm copper and 4mm galvanized steel sheets.

Advantage of Bodor CNC Metal Tube Laser Cutting Machine:
1. Electric-driver motor in rotary device adjust speed freely, Easy-work, low noisy,high rotary speed,high accuracy.
2. Intersecting line can be cut. Best choice for tubular construction.
3. High efficiency for photoelectric conversion: Compare with CO2 laser cutting machine, fiber laser cutting machine have three times photoelectric conversion efficiency.
4. Low maintenance: fiber line transmission no need reflect lens, save maintenance cost;
5. Excellent path quality: Smaller laser dot and high work efficiency, high quality.
6. High cutting speed: cutting speed is 2-3 times than same power CO2 laser cutting machine.
7. Stable running: adopt top world import fiber lasers, stable performance, key parts can reach 100,000 hours;
8. Easy operations: fiber line transmission, no adjustment of optical path.

1000W fiber laser cutting machine cutting parameters

Material	Cutting thickness (mm)	Cutting speed (m/min)	Cutting gas	Cutting pressure	Nozzle	Collimator / Focus
Carbon steel	0.5	30-40	Air	6	1.5 single layer	75/125
	0.8	20-25	Air	8	1.5 single layer	75/125
	1	18-22	Air	10	2.0 single layer	75/125
	2	5-6.5	Oxygen	3.5	1.2 double layer	75/125
	3	3-3.5	Oxygen	0.5-1	1.2 double layer	75/125
	4	2-2.3	Oxygen	0.5	1.2 double layer	75/125
	5	1.5-1.8	Oxygen	0.5	1.2 double layer	75/125
	6	1.2-1.4	Oxygen	0.5	1.5 double layer	75/125
	8	0.9-1.2	Oxygen	0.5	2.0 double layer	75/125
	10	0.7-0.8	Oxygen	0.5	2.5 double layer	75/125
	12	0.5-0.65	Oxygen	0.5	2.5 double layer	75/125
Stainless steel	0.5	30-40	Nitrogen	7	1.5 single layer	75/125
	0.8	22-25	Nitrogen	10	1.5 single layer	75/125
	1	20-23	Nitrogen	12	1.5 single layer	75/125
	2	6-7	Nitrogen	15	2.0 single layer	75/125
	3	2.5-2.8	Nitrogen	18	2.0 single layer	75/125
	4	0.8-1.2	Nitrogen	18	2.0 single layer	75/125
	5	0.6-0.8	Nitrogen	18	2.0 single layer	75/125
Aluminum	0.5	20-25	Air / Nitrogen	8	1.5 single layer	75/125
	0.8	15-18	Air / Nitrogen	9	1.5 single layer	75/125
	1	10-12	Air / Nitrogen	12	1.5 single layer	75/125
	2	3-3.5	Air / Nitrogen	18	2.0 single layer	75/125
	3	1-1.5	Air / Nitrogen	18	2.0 single layer	75/125
Brass	0.5	22-30	Nitrogen	12	1.5 single layer	75/125
	0.8	13-17	Nitrogen	12	1.5 single layer	75/125
	1	10-12	Nitrogen	15	1.5 single layer	75/125
	2	2-3	Nitrogen	18	2.0 single layer	75/125
	3	1-1.3	Nitrogen	18	2.0 single layer	75/125
Copper	0.5	15-18	Oxygen	12	1.5 single layer	75/125
	0.8	8-12	Oxygen	12	1.5 single layer	75/125
	1	5-7	Oxygen	12	1.5 single layer	75/125
	2	0.8-1.2	Oxygen	15	2.0 single layer	75/125

Technical Parameter

Working Area	3000*1500mm
Controller+Heigh follower	Cypcut
Laser Source	Fiber Laser Source 1000W
Wave Length	1070nm±10nm
Laser Head	Optional
Gear and Rack	Germany
Guide Rail	Taiwanese HIWIN
Positioning Precision	≤±0.04mm
Cutting Thickness	1-6mm
Max cutting speed	40000mm/min(according to materials)
Working voltage	AC220V/110V±10% 50HZ/60HZ
Min line Width	≤0.12mm
Transmission	Yaskawa servo 850W+FASTON reducer
Z axis	Yaskawa 400W+brake
Cooling	Water Cooling
Structure	10mm Thickness Welded steel tube,Aluminium Alloy Gantry
Power Consumption	≤7.5KW

Applied materials of 1000W Fiber Laser Cutting Machine

Fiber cutter is mainly used for carbon steel cutting, mild steel, stainless steel, silicon steel,aluminum alloy, titanium alloy, galvanized steel sheet, pickling board, aluminum zinc plate, copper and many kinds of metal materials. It is an cnc laser cutters can be used to do high precision cutting. It also can be called fiber cutter machine,fiber optic laser cutter,laser cutter for metal,fiber cutter,carbon steel cutting,cnc laser cutters.
