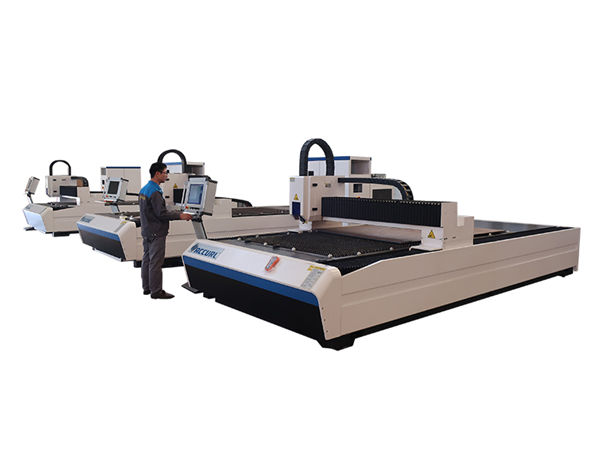

high precision laser engraving cutting machine for thickness 5mm plate

high precision laser engraving cutting machine for thickness 5mm plate

Product Details

Certification: ISO9001:2008
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: wooden case
Delivery Time: 15 days
Supply Ability: 1000 units

Detailed Product Description

Product Name:Plate And Tubes Fiber Laser Cutting MachineLaser Type:Fiber Laser
Laser Power:500w, 800wName:Plate Laser Engraving Cutting Machine
Feature:High PrecisionSystem:Cypcut Controlling System

In order to meet the increasingly complex needs of consumers, Rise Laser is targeted at market demand, independently developed RL3015 sheet and pipe integrated laser fiber cutting machine, one machine dual purpose, this machine solves double cutting needs by one time
1. 300w, 500w, 800w, 1000w, 2000w 3000w Maxphotonics fiber optic laser optional
2. Fiber Cutting aluminum, carbon steel, iron, stainless steel, silver, hardware, sheet metal processing, metal tube pipe materials ,etc..
3. China Top manufactuers, Jinan G.Weike, best price and quality, with CE & FDA & ISO certificates
4. Fiber Cutting thickness 1mm, 1.5mm, 2mm, 3mm, 5mm, 6mm, up to 20mm
5. RL3015 Tube pipe fiber laser cutting machine, 1500*3000mm
6. Price for 1000W Stainless steel silver metal tube pipe CNC fiber laser cutting machine

Main Features

1. Germany Precitec / Swiss Raytool laser head, automatic focus height follower optional.
2. GERMANY IPG fiber laser generator, 500W, 750W, 1KW, 2KW, 3KW, 4KW, 6KW, 8KW Optional
3. Japan Yaskawa servo motor system.
4. Taiwan HIWIN linear guide rail.
5. Cypcut controlling system.
6. BEST Germany Atlanta double driver rack gear.
7.Germany Neugart reducer. is using below:
3. China Top manufactuers, Jinan G.Weike, best price and quality, with CE & FDA & ISO certificates
4. Fiber Cutting thickness 1mm, 1.5mm, 2mm, 3mm, 5mm, 6mm, up to 20mm
5. LF3015CR Tube pipe fiber laser cutting machine, 1500*3000mm
6. Price for 1000W Stainless steel silver metal tube pipe CNC fiber laser cutting machine

Laser source: Maxphotonics fiber laser source
Fiber laser power : 500W, 800W, 1000W, 1500W, 2000W, 3000W (Optional)
Working size : 3000*1500mm
X and Y positioning accuracy : +-0.05mm
Transmission mode : import Germany Atlanta high precision gear and rack with double driving rack fiber laser cutting machine

Technical Parameters

Laser typeMaxphotonics fiber laser
Laser power500w 750w 1000w 2000w 3000w fiber optional
Cutting area1500mm*3000mm
Whole machine size1360*780*1100mm
Engraving speed0 - 60,000mm/min
Resetting positioning accuracy±0.05mm
Working voltageAC 110 - 220V±10%, 50 - 60Hz
Gross power<1,000W
Operating temperature0 - 45°C
Operating humidity5- 95%
Minimum shaping characterEnglish 1 x 1mm
Graphic format supportedBMP,PLT, DST, DXF, and AI
Driving system500w 750w 1000w 2000w 3000w fiber optional
Cooling modewater-cooling and protection system
Auxiliary equipmentsExhaust-fans, air-exhaust pipe
Controlling softwareCypcut control system
Compatible softwareCorelDraw AutoCAD Photoshop
Net Weight6000kg(depends on models)

Application

1. clean cut edges without burr for more efficient material utilization
and reduced secondary operations.
2. Cutting of various material thicknesses and combinations in one operation
3. No material deformation due to contactless material processing
4. Highly controllable, repeatable and accurate processing.Etc.
Since sheet and pipe integrated design, Industry adaptability of RL3015 has been greatly enhanced, including petroleum and pipe material, fitness equipment and other pipe material mainly mechanical processing, automotive Manufacturing, Machine cabinet and other board materials mainly mechanical processing etc.
