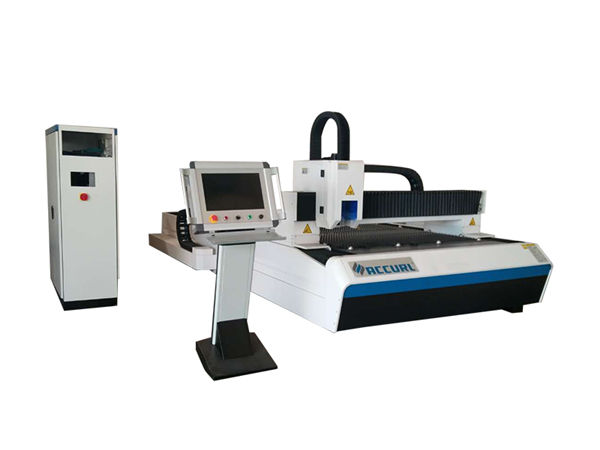

high speed pmi metal fiber laser cutting machine stable performance for hardware

Product Details

---

Certification: ISO9001:2008
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: NEGOTIATION
Packaging Details: WOODEN CASE
Delivery Time: 15 DAYS
Supply Ability: 2000 UNITS

Detailed Product Description

---

Cutting Area:	300mm*150mm	Laser Source:	Fiber Laser
Cutting Head:	Raycools	Chiller:	S&A
CNC Cutting System:	AHEADCUT	Air-operated System:	SMC
Electric System:	Schneider	Guide Rail:	PMI

Features

---

Gantry mechanical structure, stable performance, equipment running smoothly;
AHEADCUT USA fiber laser control system, with the function to adjust the laser power, ensure to cut with good quality, easy to operation;
The machine using AC server motor drive system, moving system adapt high precision gear rack to ensure that equipment of high speed, high precision and high reliability;
RAYTOOLS from Switzerland fiber specialized cutting head,safety and stable;
High performance Max laser source , low processing cost,energy conservation and environmental protection.

Technical parameter

---

Item	Parameter
Laser type	Fiber laser
Wave length	1070-1080nm
Electro-optical conversion efficiency	25-30%
XYZ Route	3025mm/1525mm/100mm
Material Cutting thickness	0.2-8mm
Cutting seam width	0.1-0.2mm
Repeat position accuracy	±0.05mm/500mm
Positioning accuracy	±0.05mm/500mm
Max.Moving Speed	60000mm/min
Max.Accerlation speed	0.8g
Max.loading weight	500kg
Machine weight	2300kg
Required Power	220V 50Hz/60Hz
Machine size(L*W*H)	4500mm*2450mm*1700mm



Name	Qty.	Original place	Manufacture
		Standard
1	Laser Source(800W)	1	China	MAX
2	Cutting Head	1	Swiss	RAYTOOLS
3	Machine bed and accessories	1	China	MX laser
4	Electric System	1	Japan,Germany	OMRON,Schneider
5	Air-operated System	1	Japan	SMC
6	Gear Rack	3	China	MX laser
7	Guide Rail	3	Taiwan	PMI
8	Reduction Box	3	China	MX laser
9	Accessories of Bed	1	China	MX laser
10	CNC Cutting System	1	USA	AHEADCUT
11	Industrial Control Computer	1	USA	AHEADCUT
12	AC server motor and drive	4	China	MX laser
13	Water chiller	1	China	MX laser
14	Waste recovery device	1	China

Applied Fields of laser cutting machine

---

Laser Metal Cutting machine is widely used in hardware, precise machinery, automobile components, glasses clocks and watches, precise cutting, medical equipment, instrument and other metal related industry.

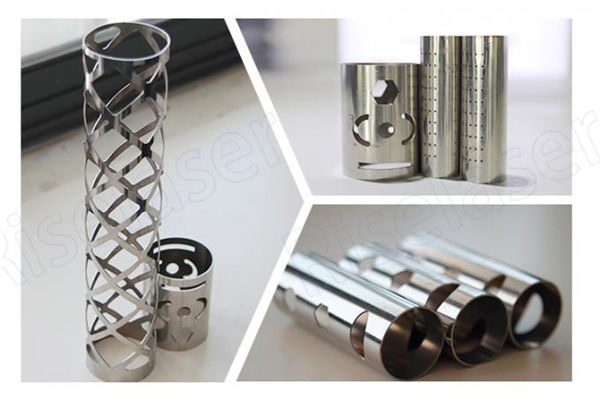

It can zarry on non-contact cutting on metal sheet, pipe, especially for stainless steel, sttel plate,diomond saw blades and othermetal materials, it has excellent processiong for the various high-brittle hard alloys. In the lines of hardware and metal sheet industries, laser cutting technology can be partially replace the line cutting.
