high speed sheet metal cnc cutting machine stable z axis automatic tracking

Product Details

Payment & Shipping Terms:

Minimum Order Quantity: 1

Price: Negotiable

Packaging Details: wooden package

Delivery Time: 15 working days

Payment Terms: T/T

Supply Ability: 1000 Unit per Month

Detailed Product Description

Product Name:	Plate And Tubes Fiber Laser Cutting Machine	Laser Type:	Fiber Laser
Laser Power:	500w/800w/1000w	Working Size:	3000*1500mm
Warranty:	12 Months	After-Sales Service:	Engineers Service Overseas
Weight:	3000 Kgs	Package:	Wooden Case

One Machine,Dual Use ,can cut metal tube and metal plate by one time

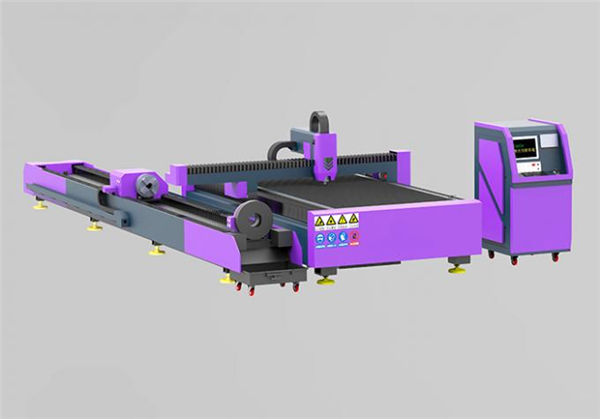

In order to meet the increasingly complex needs of consumers, Rise Laser is targeted at market demand, independently developed RL3015 sheet and pipe integrated laser fiber cutting machine, one machine dual purpose, this machine solves double cutting needs by one time.

Production Description

. 300w, 500w, 800w, 1000w, 1500w 3000w Maxphotonics fiber optic laser optional.
. Fiber Cutting aluminum, carbon steel, iron, stainless steel, silver, hardware, sheet metal processing, metal tube pipe materials ,etc..
. China Top manufactuers, Jinan G.Weike, best price and quality, with CE & FDA & ISO certificates.
. Fiber Cutting thickness 1mm, 1.5mm, 2mm, 3mm, 5mm, 6mm, up to 20mm.
. RL3015 Tube pipe fiber laser cutting machine, 1500*3000mm.
. Price for 1000W Stainless steel silver metal tube pipe CNC fiber laser cutting machine.

Stable Z axis automatic tracking function

The most advanced capacitor non-contact automatic tracking system, it can automatically adjust the best focal length to ensure the best cutting effect of the whole board to avoid the material is not smooth, the focal length of the material caused by the problem of scrapped.
Because the cutting head is equipped with non-contact sensing device, under the control of the system, can achieve a stable Z-axis floating function, directly eliminate the uneven sheet on the cutting quality, CNC laser cutting machine has a high cutting yield.

Machine body

Using gantry type mechanic structure , high precision ,good quality, stable performance.
Machine bed:The use of high-quality steel and pipe welded from the frame structure, the machine is annealed, the second aging treatment, large-scale milling machine precision processing, these design and processing means to ensure that the machine has excellent shock resistance, high rigidity and stability.
Waste recycling equipment:Equipped with trolley, clean up the blanking without lifting the table.

Transmission system

The use of bilateral rack gear transmission and imported linear guide, and the use of dual-drive servo motor drive system, effectively ensuring the laser cutting speed and accuracy.

Control system

The use of professional PC industrial computer operation, graphical interface, easy to operate, professional cutting control software can freely design a variety of graphics and text, real-time processing, support CAD, CorelDraw and other professional mapping software.
High-quality industrial computer control operation
High efficient, easy to operate CNC cutting system
Z axis automatic tracking function
CNC cutting control system
CNC cutting control system is the use of high-performance control card, based on Windows XP Professional development, fully docking with CNC control system, therefore, the real-time control and software upgrates between machine and laser source more convenient and fast.

Technical Parameters

Laser source: Maxphotonics fiber laser source
Fiber laser power : 500W, 800W, 1000W, 1500W, 2000W, 3000W (Optional)
Working size : 3000*1500mm
X and Y positioning accuracy : +-0.05mm
Transmission mode : import Germany Atlanta high precision gear and rack with double driving rack fiber laser cutting machine

^{Laser power}	^{500w 750w 1000w 1500w 3000w fiber optional}
^{Cutting area}	^{1500mm*3000mm}
^{Whole machine size}	^{13607801100mm}
^{Engraving speed}	^{0 - 60,000mm/min}
^{Resetting positioning accuracy}	^±0.05mm
^{Working voltage}	^{AC 110 - 220V±10%, 50 - 60Hz}
^{Gross power}	^<1,000W
^{Operating temperature}	^{0 - 45°C}
^{Operating humidity}	^{5- 95%}
^{Minimum shaping character}	^{English 1 x 1mm}
^{Graphic format supported}	^{BMP,PLT, DST, DXF, and AI}
^{Driving system}	^{500w 800w 1000w 1500w 3000w fiber optional}
^{Cooling mode}	^{water-cooling and protection system}
^{Auxiliary equipments}	^{Exhaust-fans, air-exhaust pipe}
^{Controlling software}	^{Cypcut control system}
^{Compatible software}	^{CorelDraw AutoCAD Photoshop}
^{Net Weight}	^{3000kg(depends on models)}

1.Germany Precitec / Swiss Raytool laser head, automatic focus height follower optional.
2.Maxphotonics fiber laser generator, 500W, 800W, 1KW, 2KW, 3KW, 4KW, 6KW, 8KW Optional
3.Japan Yaskawa servo motor system.
4.Taiwan HIWIN linear guide rail.
5.Cypcut controlling system.
6.BEST Germany Atlanta double driver rack gear.
7.Germany Neugart reducer. is using below:
3. China Top manufactuers, Jinan G.Weike, best price and quality, with CE & FDA & ISO certificates
4. Fiber Cutting thickness 1mm, 1.5mm, 2mm, 3mm, 5mm, 6mm, up to 20mm
5. RL3015 Tube pipe fiber laser cutting machine, 1500*3000mm
6. Price for 1000W Stainless steel silver metal tube pipe CNC fiber laser cutting machine.

Application

1. Clean cut edges without burr for more efficient material utilization and reduced secondary operations.
2. Cutting of various material thicknesses and combinations in one operation
3. No material deformation due to contactless material processing.
4. Highly controllable, repeatable and accurate processing.Etc.
Since sheet and pipe integrated design, Industry adaptability of RL3015 has been greatly enhanced, including petroleum and pipe material, fitness equipment and other pipe material mainly mechanical processing, automotive Manufacturing, Machine cabinet and other board materials mainly mechanical processing etc.
