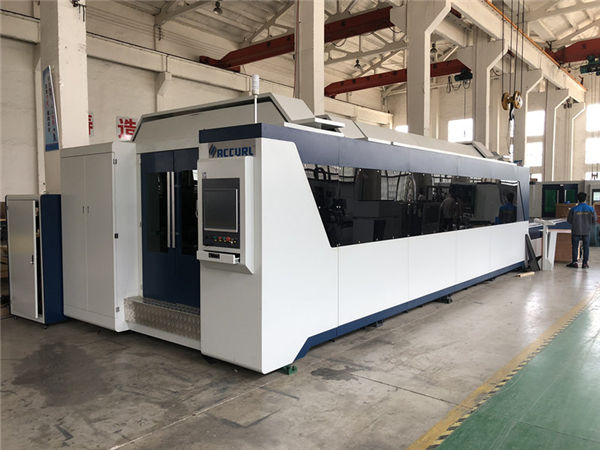

high speed square tube laser cutting machine

Product Details

Certification: CE
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: Negotiable
Packaging Details: 1*40GP container
Delivery Time: 30days
Payment Terms: L/C, D/A, T/T, D/P, Western Union

Detailed Product Description

Application::	All Metal Material	Cutting Thickness:	SS Upto 12mm, MS Upto 22cm
Laser Type::	Imported Original Fiber Laser	Max Cutting Thickness:	20mm/CS; 10mm/SS
Min.line Width:	0.1mm	Control Software::	Cypcut
Graphic Format Supported::	AI, BMP, DST, DWG, DXF, DXP, LAS, PLT	Brand Name::	TAIYI LASER
Repeating Accuracy::	+/-0.03mm	Operating Temperature::	0°C-45°C
Cooling Mode:	Water Cooling	Laser Source:	IPG/Nlight/Raycus/Max
Voltage::	AC380V±10% 50HZ(60HZ)	Cutting Area:	ø40-ø200 X 6000mm

Advantage of fiber laser machine

1.Compact structure, small floor area.

2.Stability and reliability of light path system and control system.

3.High performance and low operating cost, famous IPG fiber laser with up to more than 100 thousand hours life-cycle.

4.Higher cutting quality and efficiency, cutting speed is up to 15 m/min with appearance and beautiful cutting edge.

5.High precision servo motors, lead screws and guide ways with famous brands to ensure the efficiency and accuracy, greatly increasing the stability and reliability.

Feature & Property

Adopting World Famous Germany Dlaser Fiber laser source and USA Laser Mech cutting head & Dynamic Focus System , it can cut and punch different kind of metal material with high precision and high speed.
Since laser is transmitted by fiber, it is no need to maintenance or adjusts the laser optical path. It greatly reduces the machines fault rate and prolongs the working life.
Large format cutting area meets the demands of various kinds of metal processing.

Since laser is transmitted by fiber, it is no need to maintenance or adjusts the laser optical path. It greatly reduces the machines fault rate and prolongs the working life.
Since laser is transmitted by fiber, it is no need to maintenance or adjusts the laser optical path.It greatly reduces the machines fault rate and prolongs the working life.

Specification

Model	6000GA
Laser source medium	Fiber
Cutting diameter	40-200mm
Z axle stroke	250 mm
Max. positioning speed	120 m/min
X,Y axle Max. accelerate speed	1.0G
Cooling form	Water cooling
Laser wavelength	1070nm
Output power of laser source	500W/1000W / 1500W / 2000W 2500W / 3000W / 4000W (Optional)
Min. cutting gap	≤ 0.1 mm
Positioning accuracy of X, Y and Z axles	± 0.03 mm
Repeated positioning accuracy of X, Y and Z axles	± 0.01 mm
Thickness of cutting material (according to material)	0.2 - 25 mm
Driver model	Imported servo motor
Power requirement	380V, 50/60 Hz
Working temperature	0-45℃
Continuous working time	24 Hours
Machine weight	About 12000 Kgs
Total protection level of power supply	IP54

Cutting Thickness Reference Table

Laser Power	Max cutting thickness
Laser Power	Carbon steel(mm)	Stainless steel(mm)	Aluminum (mm)	Brass (mm)
700W	8	3	1	1
1000W	12	4	2	2.5
1500W	14	5	4	3
2000W	16	6	5	4
3000W	22	10	6	8
Above parameter for reference only

Cutting materials

The fiber laser can cut all kinds of non ferrous metals, such as copper,aluminum,this high reflective materials, and tungsten,can also cut stainless steel,carbon steel, manganese steel,galvanized sheet,aluminum platform gold alloy plate, and other rare metals.

Application industry

Suitable for stainless steel, carbon steel, alloy steel, copper, brass, steel, galvanized steel, nickel titanium alloy, nickel chromium alloy and titanium alloy metal materials

Fiber laser cutting machine application:

metal cutting, electrical switch manufacturing, aerospace, food machinery, textile machinery,engineering machinery, locomotive manufacturing, agriculture and forestry machinery, elevator manufacture, special vehicles, household appliances, tools, processing, IT manufacturing, oil machinery, food machinery, diamond tools, welding, welding gear, metal materials, decoration advertising, laser surface treatment of foreign processing services, such as all kinds of machinery processing industry.

Detailed Images

	Name:Machine body and accessories a.600℃ heat treatment, 24 hours cooling in the oven, accurate CO2 protection welding, to make sure 20 years usage without deformation. b.Synchronous X/Y/Z axes: The Z-axis can run 150mm, suitable for cutting many varieties of metal sheets. c.High quality guarantees its durability and easier maintenance.
Name:AC servo motor & driver The imported servo motor (Y-axis driven by two servo motors) along with the sophisticated planetary reducer ensures steady, precise and reliable drive.
	Name:Precision Linear Guides Advanced cutting system, laser power and servo movement suit each other perfectly, imported high precision gear and rack drive system, exchangeable double work table, to ensure higher processing speed and accuracy..
Name:Cutting head The contactless cutting head has the function of auto height tracking and anti-collision, which greatly improves cutting speed, smoothness and cutting accuracy under the same output power. In a word, the cutting efficiency can be increased.
	Name:Laser source fast speed,high precision cutting line, and smo

Name:Machine body and accessories

a.600℃ heat treatment, 24 hours cooling in the oven, accurate CO2 protection welding, to make sure 20 years usage without deformation.
b.Synchronous X/Y/Z axes: The Z-axis can run 150mm, suitable for cutting many varieties of metal sheets.
c.High quality guarantees its durability and easier maintenance.

Name:AC servo motor & driver

The imported servo motor (Y-axis driven by two servo motors) along with the sophisticated planetary reducer ensures steady, precise and reliable drive.

Name:Precision Linear Guides

Advanced cutting system, laser power and servo movement suit each other perfectly, imported high precision gear and rack drive system, exchangeable double work table, to ensure higher processing speed and accuracy..

Name:Cutting head

The contactless cutting head has the function of auto height tracking and anti-collision, which greatly improves cutting speed, smoothness and cutting accuracy under the same output power. In a word, the cutting efficiency can be increased.

Name:Laser source

fast speed,high precision cutting line, and smo

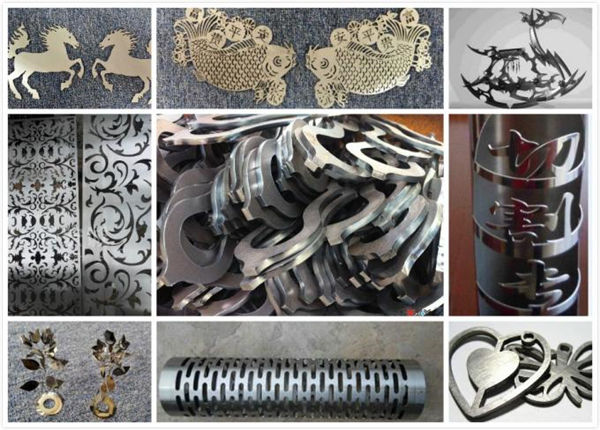

Cutting Samples

Pre-sale service

1. Free sample cutting,

For free sample cutting/testing, please send us your CAD file, we will do cutting here and make video to show you the cutting ,or send sample to you check cutting quality.

2. Customized machine design

According to customer’s application, we may revise our machine accordingly for customer’s convenience and high production efficiency.

Service after sales

#. In the processing of production, our professional technical engineers inspect the processing to ensure the quality of products
#. Every machine must be tested before delivery for 8 hours , all of them are absolutely qualified.
#. 18 months guarantee of the whole machine.
#. Main parts(excluding the consumables) shall be changed free of charge if there is any problem
during the warranty period.
#. Lifetime maintenance free of charge.
#. We will provide the consumable parts at an agency price when you need replacement.
#. Machine has been adjusted before delivery.
#. Our staff can be sent to your company to install or adjust if necessary

Warranty

a).1Year for the whole fiber laser cutting machine. (Man-made Damage is negotiated.).
b).Laser source 2 Years warranty
c).Lifelong maintenance and spare parts supply
d).Free training for operation staffs. (engineer can go abroad is negotiated.)

FAQ

Q1: How can I get the best machine for me?
You can tell us your working material, detail work by picture or vedio so that we can judge whether our machine can meet your need or not. Then we can give you the best model depends on our experience.

Q2: This is the first time I use this kind of machine, is it easy to operate?
We will send you manual and guide vedio in English, it can teach you how to operate the machine. If you still can not learn how to use it, we can help you by "Teamviewer" online help software.Or we can talk by phone, email or other contact ways.

Q3: If the machine has problem in my place, how could I do?
We could send free parts to you in warranty period if machines have any problem under "normal use".

Q4:Do You Arrange Shipment For The Machines?
Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or their agents.
