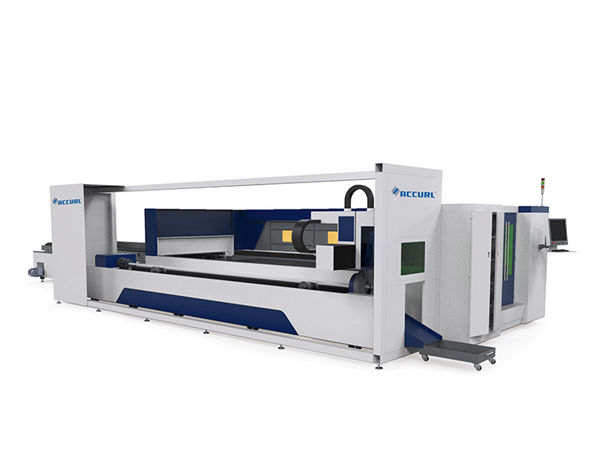

industrial metal pipe laser cutting machine electric driven drawer style tray

Product Details

Fiber Metal Laser Cutting Machine Features

The High-power laser cutting machine with the highest precision in China, it can cut metal door design with big size and perfectly cut up to 22mm mild steel,12mm stainless steel,10mm aluminum,5mm brass,4mm copper and 4mm galvanized steel sheets.

Machine Features

It is the new design full closed fiber laser cutting machine with dual-working table from golden laser,and it adopts modern advanced cutting system,auto-focus.
The imported high precision fiber laser generator,ensure the high speeding,high precision.
Full protective enclosure design provides safety protection from unseen laser radiation and mechanical movement,closed proceed environments,safety and environment-friendly.
Pallet working table saves feeding time.
Drawer style tray makes easy collecting and cleaning for the scraps and small parts.
Gantry double driving structure, high damping bed, good rigidity, high speed and acceleration.
The world’s leading fiber laser resonator and electronic components to ensure machine superior stability.

Product Description

Advantages of Laser Cutting Machine

1) Excellent beam quality: Smaller focus diameter and high work efficiency, high quality

2) High cutting speed: Cutting speed is more than 20m/min

3) Stable running: Adopting the top world import fiber lasers, stable performance, key parts can reach 100,000 hours;

4) High efficiency for photoelectric conversion: Compare with CO2 laser cutting machine, fiber laser cutting machine has three times photoelectric conversion efficiency

5) Low cost & Low maintenance: Save energy and protect environment. Photoelectric conversion rate is up to 25-30%. Low electric power consumption, it is only about 20%-30% of traditional CO2 laser cutting machine. Fiber line transmission no need reflect lens, save maintenance cost;

6) Easy operations: fiber line transmission, no adjustment of optical path;

7) Super flexible optical effects: Compact design, easy to flexible manufacturing requirements.

Cutting Pipe Detail Specification

Advantage of Metal Tube Laser Cutting Machine

1. Electric-driver motor in rotary device adjust speed freely, Easy-work, low noisy,high rotary speed,high accuracy.
2. Intersecting line can be cut. Best choice for tubular construction.
3.Imported high precision transmission device which is perfectly work with servo system, thus it can make sure cutting precision and efficiency.
4. Excellent path quality: Smaller laser dot and high work efficiency, high quality.
5. High cutting speed: cutting speed is 2-3 times than same power CO2 laser cutting machine.
6. Stable running: adopt top world import fiber lasers, stable performance, key parts can reach 100,000 hours;
7. High efficiency for photoelectric conversion: Compare with CO2 laser cutting machine, fiber laser cutting machine have three times photoelectric conversion efficiency.
8. Low cost: Save energy and protect environment. Photoelectric conversion rate is up to 25-30%. Low electric power consumption, it is only about 20%-30% of traditional CO2 laser cutting machine.
9. Low maintenance: fiber line transmission no need reflect lens, save maintenance cost;
10. Easy operations: fiber line transmission, no adjustment of optical path.

Applicable materials

Mainly used for cutting carbon steel, silicon steel, stainless steel, aluminum alloy, titanium alloy, galvanized steel sheet, pickling board, aluminum zinc plate, copper and many kinds of metal materials cutting and so on.

Applicable Industry

Sheet metal, hardware, kitchenware, electronic, automotive parts, glass, advertising, craft, lighting, decoration, jewelry, etc
Applicable Material:
Specially for carbon steel, stainless steel, galvanized steel, alloy, titanium, aluminum, brass, copper and other metal sheets.
