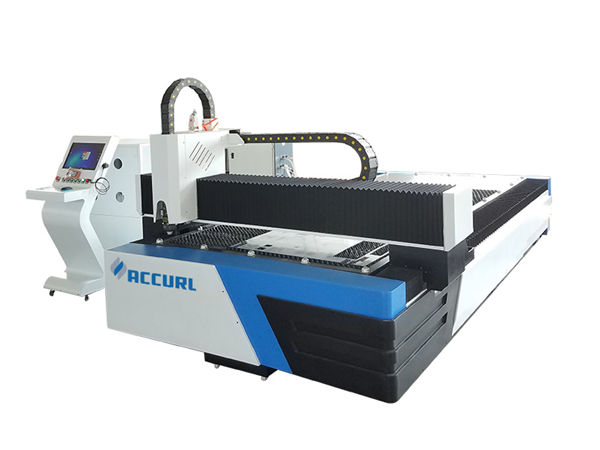

ipg / raycus cnc fiber laser cutting machine laser sheet metal cutter

ipg / raycus cnc fiber laser cutting machine laser sheet metal cutter

Product Details

Certification: CE
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: Negotiable
Packaging Details: 1*20GP container
Delivery Time: 30days
Payment Terms: L/C, D/A, T/T, D/P, Western Union

Detailed Product Description

Application:All Metal MaterialCutting Thickness:SS Upto 10mm, MS Upto 22cm
Laser Type:FiberCNC Or Not:Yes
Cooling Mode:Water CoolingControl Software:Cypcut
Graphic Format Supported:AI, BMP, DST, DWG, DXF, DXP, LAS, PLTPlace Of Origin:China
Model Number::TY-3015JBAfter-sales Service Provided:Engineers Available To Service Machinery Overseas
Repeating Accuracy::+-0.03mmOperating Temperature::0°C-45°C
Working Humidity::5%-95%Laser Source:Chinese Or Imported
Voltage::AC380V±10% 50HZ(60HZ)Cutting Area:3000*1500mm Standard, Bigger Can Be Customized

Machine body

1. Taiyi's Machine body with 8mm steel structure, 600℃ heat treatment, Precise welding, to make sure 20 years usage without deformation.
2. Gantry with magnesium alloy casting, Strong stability without deformation, Fast movement.
3. High efficiency zoning smoking system at both sides of machine body, Strong segmented dust and smoking collection, it will reduce harm to worker.
4. Imported precision flange reducer and servo motor, Fast running speed.
5. 70 blades and 6 slide bars on the machine bed, with close blades to reduce machine warning, slide bars working with cylinders to upload and download sheets easily.
6. Flexible loading box can be opended front and both sides which is convinient for machine working condition.

Specification

Laser SourceIPG/Raycus/Nlight
Machine Bodygantry structure
Working TravelHigh Precision Ball screw numerical control table with feeding device
Max running speed80m/min
X/Y location precision0.03mm/m
Power Supply380V 50Hz/60Hz
X/Y repeated location precision±0.03mm
Running Temperature0°C-45°C
Max Acceleration1.0G
Machine gross power<16KVA
Applied MaterialsThin mild steel, stainless steel and other kinds of metallic sheets
Cutting Area3000mm*1500mm/4000mm*2000mm/6000mm*2000mm
Total Weight4500KGS

Cutting Reference Table

Laser PowerMax cutting thickness
Carbon steel(mm)Stainless steel(mm)Aluminum (mm)Brass

(mm)

800W8311
1000W12422.5
1500W14543
2000W16654
3000W221068
Above parameter for reference only

Detailed Images

Name:Machine body and accessoriesa.600℃ heat treatment, 24 hours cooling in the oven, accurate CO2 protection welding, to make sure 20 years usage without deformation.
b.Synchronous X/Y/Z axes: The Z-axis can run 150mm, suitable for cutting many varieties of metal sheets.
c.High quality guarantees its durability and easier maintenance.
Name:AC servo motor & driverThe imported servo motor (Y-axis driven by two servo motors) along with the sophisticated planetary reducer ensures steady, precise and reliable drive.
Name:Precision Linear GuidesAdvanced cutting system, laser power and servo movement suit each other perfectly, imported high precision gear and rack drive system, exchangeable double work table, to ensure higher processing speed and accuracy..
Name:Cutting headThe contactless cutting head has the function of auto height tracking and anti-collision, which greatly improves cutting speed, smoothness and cutting accuracy under the same output power. In a word, the cutting efficiency can be increased.
Name:Laser sourcefast speed,high precision cutting line, and smooth cutting edge



Cutting Samples

Training

After signing the contract , your company can arrange technologist come our factory to learn basic knowledge of equipment and operating essentials , sufficient training time about 1-3 days , the training content is as follows:
a) Common drawing software training ;
b) Machine on and off training procedures ;
c) The significance of control panel and software parameters, parameters range’s setting;
d) Basic cleaning and maintenance of the machine ;
e) Common Hardware Troubleshooting ;
f) Caution of operation

Warranty

a).1Year for the whole machine(Man-made Damage is negotiated.).
b).Laser source 2 Years warranty
c).Lifelong maintenance and spare parts supply
d).Free training for operation staffs. (engineer can go abroad is negotiated.)
