metal plate fiber laser cutting machine with thickness upto 20cm

Product Details

Certification: CE
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: Negotiable
Packaging Details: 1*20GP container
Delivery Time: 30days
Payment Terms: L/C, D/A, T/T, D/P, Western Union

Detailed Product Description

Application::	All Metal Material	Cutting Thickness:	Galvanized Sheet Upto 20mm
Laser Type::	Fiber	CNC Or Not::	Yes
Cooling Mode::	Water Cooling	Control Software::	Cypcut
Graphic Format Supported::	AI, BMP, DST, DWG, DXF, DXP, LAS, PLT	Place Of Origin::	China
Model Number::	TY-3015DD	After-sales Service Provided::	Engineers Available To Service Machinery Overseas
Repeating Accuracy::	+-0.03mm	Operating Temperature::	0°C-45°C
Working Humidity::	5%-95%	Laser Source:	Chinese Or Imported
Voltage::	AC380V±10% 50HZ(60HZ)	Cutting Area:	3000*1500mm

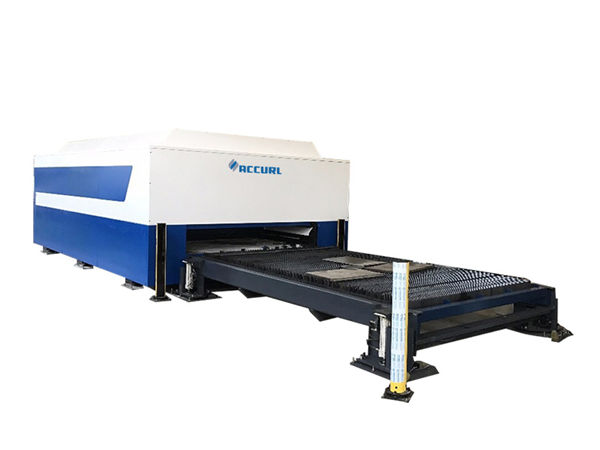

Product Name:	Metal Plate Fiber Laser Cutting Machine With Thickness Upto 20cm

Advantage

1. Compare with traditional laser, fiber laser is more environmental protection:
2. Much lower power consumption: fiber laser's photoelectric conversion efficiency 15times higher than traditional laser.
3. Higher laser spot quality: single-module laser source
4. Lower consumption: Electric consumption is under 7KW per hour.

Why Choose Us

Machine body

1. Taiyi's Machine body with 8mm steel structure, 600℃ heat treatment, Precise welding, to make sure 20 years usage without deformation.
2. Gantry with magnesium alloy casting, Strong stability without deformation, Fast movement.
3. High efficiency zoning smoking system at both sides of machine body, Strong segmented dust and smoking collection, it will reduce harm to worker.
4. Imported precision flange reducer and servo motor, Fast running speed.
5. 70 blades and 6 slide bars on the machine bed, with close blades to reduce machine warning, slide bars working with cylinders to upload and download sheets easily.
6. Flexible loading box can be opended front and both sides which is convinient for machine working condition.

Drive System

1. Schneider France Imported servo system ensures the possibility of realizing extreme precise positioning with the excellent dynamic response acceleration property and closed loop control method, and that makes moving positioning mechanism operate smoothly, reliably and free of maintenance; 2,Motors in X,Y,Z axis; location accuracy: ≤±0.03mm
Precision Guide Rail, Rack and pinion:
Top brand in TAIWAN, HIWIN and YYC, We used higher level from theirs company. Precise collimator is used for guide rail assembling and debugging, Ensure min precision under 0.05mm

Specification

Laser Source	IPG/Raycus/Max
Machine Body	gantry structure
Working Travel	High Precision Ball screw numerical control table with feeding device
Max running speed	80m/min
X/Y location precision	0.03mm/m
Power Supply	380V 50Hz/60Hz
X/Y repeated location precision	±0.03mm
Running Temperature	0°C-45°C
Max Acceleration	1.0G
Machine gross power	<16KVA
Applied Materials	Thin mild steel, stainless steel and other kinds of metallic sheets
Cutting Area	3000mm1500mm/4000mm2000mm/6000mm*2000mm
Total Weight	7500KGS

Detailed Images

	Name:Machine body and accessories a.600℃ heat treatment, 24 hours cooling in the oven, accurate CO2 protection welding, to make sure 20 years usage without deformation. b.Synchronous X/Y/Z axes: The Z-axis can run 150mm, suitable for cutting many varieties of metal sheets. c.High quality guarantees its durability and easier maintenance.
Name:AC servo motor & driver The imported servo motor (Y-axis driven by two servo motors) along with the sophisticated planetary reducer ensures steady, precise and reliable drive.
	Name:Precision Linear Guides Advanced cutting system, laser power and servo movement suit each other perfectly, imported high precision gear and rack drive system, exchangeable double work table, to ensure higher processing speed and accuracy..
Name:Cutting head The contactless cutting head has the function of auto height tracking and anti-collision, which greatly improves cutting speed, smoothness and cutting accuracy under the same output power. In a word, the cutting efficiency can be increased.
	Name:Laser source fast speed,high precision cutting line, and smooth cutting edge

Name:Machine body and accessories

a.600℃ heat treatment, 24 hours cooling in the oven, accurate CO2 protection welding, to make sure 20 years usage without deformation.
b.Synchronous X/Y/Z axes: The Z-axis can run 150mm, suitable for cutting many varieties of metal sheets.
c.High quality guarantees its durability and easier maintenance.

Name:AC servo motor & driver

The imported servo motor (Y-axis driven by two servo motors) along with the sophisticated planetary reducer ensures steady, precise and reliable drive.

Name:Precision Linear Guides

Advanced cutting system, laser power and servo movement suit each other perfectly, imported high precision gear and rack drive system, exchangeable double work table, to ensure higher processing speed and accuracy..

Name:Cutting head

The contactless cutting head has the function of auto height tracking and anti-collision, which greatly improves cutting speed, smoothness and cutting accuracy under the same output power. In a word, the cutting efficiency can be increased.

Name:Laser source

fast speed,high precision cutting line, and smooth cutting edge

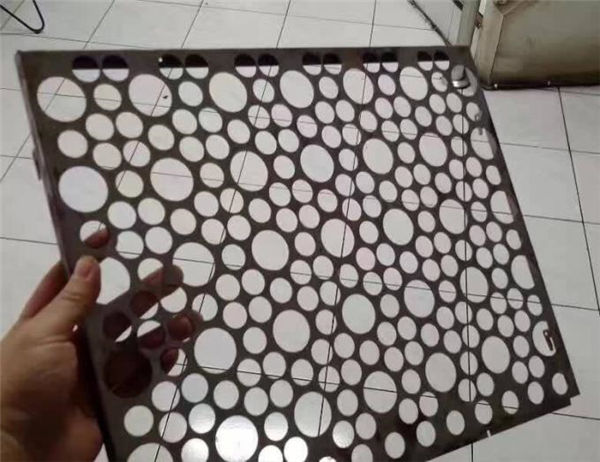

Cutting Samples
