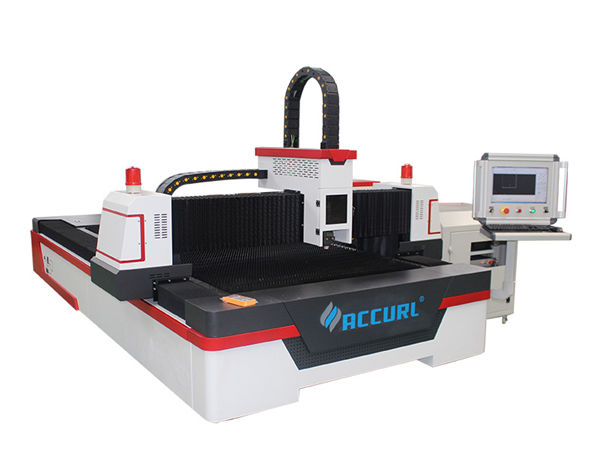

metal plate small laser cutter , small laser metal cutting machine 60m / min

Product Details

Certification: ISO9001:2008

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit

Price: negotiation

Packaging Details: Wooden Case

Delivery Time: 7-15 days

Supply Ability: 2000 units per month

Detailed Product Description

Product Name:	Fiber Laser Cutting Machine	Laser Power:	500w/800w
Working Area:	500*500mm	Max Moving Speed:	60m/min
Positioning Accuracy:	± 0.01-0.03	Powe Supply:	3×380V±10% 220V±10%
Package:	Wooden Case	Warranty:	1 Year

Products Description

precision laser cutting machine is designed and made by RISE LASER. Adopted with leading laser technology for thin sheet metal application. The machine is combined with marble and Cypcut laser cutting system. With Integrated designing, dual gantry linear motor driving system, friendly interface and long term stable working.

Main Features

1. Easy to operate: Adopted world’s leading technology EtherCAT bus USA cnc laser cutting system, very easy to operate;
2. Safe and compact structure: small size, very suitable for small and medium factories processing production;
3. High efficient and high speed: adopted double drive liner motor drive system, effectively improve the cutting accuracy and production efficiency;
4. Fiber laser source: adopted Maxphotonics laser source, which is the first domestic brand of the stable and reliable medium power laser source;
5. Precision cutting: adopted Swiss RAYTOOLS professional laser cutting head, to ensure the best cutting results;
6. Stable and durable: the machine tool is adopted granite marble, can keep shape and is high stable, which can effectively eliminate the shock generated by the high speed cutting processing;
7. Anti-corrosion, wear-resistant: the transmission parts is free maintenance, can cut corrosive materials.

Configuration

^#	^Item	^{Specification}	^Brand	^Remark
¹	^{Laser Source}	^800W	^Maxphotonics
²	^{linear motor}
³	^{Optical grating}	^{resolution 0.5μm}	^Spain
⁴	^Driver		^servotronix
⁵	^{Z axis Screw module group}
⁶	^{Laser cutting head}	^BT230
⁷	^{Precision linear guide rail}		^Hiwin
⁸	^Marble	^{18001350200}	^Shandong
⁹	^{Organ cover}	^Standard
¹⁰	^{Machining material}	^Standard		^{aviation aluminum-alloy}

Parameter

^{Working size}		^500×500(mm)
^{Max. Acceleration}		^1.2g
^{X AXIS}	^{Max. Moving speed}	^60m/min
	^Route	^500mm
	^{Positioning accuracy}	^±0.01mm
	^{Repeatition accuracy}	^±0.004mm
^{Y AXIS}	^{Max. Moving speed}	^60m/min
	^Route	^500mm
	^{Positioning accuracy}	^±0.01mm
	^{Repeatition accuracy}	^±0.004mm
^{Z AXIS}	^Route	^100mm

Working condition

¹	^{Working temperature}	^{-10℃～45℃}
²	^{Relativede Humidity}	^{＜90% no condenser}
³	^Environment	^{Good ventilation, no vibration}
⁴	^{Power supply}	^{3×380V±10% 220V±10%}
⁵	^{Power frequency}	^50Hz

Application of Precision Fiber Laser Cutting Machine

Suitable for carbon steel ,mild steel,SS ,aluminum alloy plate and copper plate and other metal.It is suitable for medium and thin thickness material processing.
Applied in sheet metal processing, aviation, aerospace, electronics, electrical appliances, tube fittings, automobile, food machinery, textile machinery, engineering machinery, precision parts, ships, metallurgical equipment, elevators, household appliances, sheet metal processing, kitchen utensils and appliances, craft gifts, tool processing, decoration, advertising, metal processing and other manufacturing industries.
