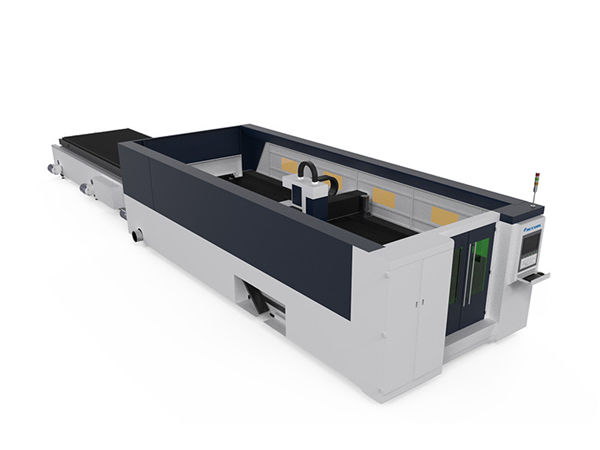

name tag laser plate cutting machine 3mm aluminium laser cutting machine

Product Details

Certification: CE
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: Negotiable
Packaging Details: 1*40GP container
Delivery Time: 30days
Payment Terms: L/C, D/A, T/T, D/P, Western Union

Detailed Product Description

Application::	All Metal Material	Cutting Thickness:	SS Upto 12mm, MS Upto 22cm
Laser Type::	Fiber	Pulse Frequency:	1-2000HZ
Positioning System:	The Red Light	Control Software::	Cypcut
Graphic Format Supported::	AI, BMP, DST, DWG, DXF, DXP, LAS, PLT	Place Of Origin::	China
Model Number::	TY-DD3015	After-sales Service Provided::	Engineers Available To Service Machinery Overseas
Repeating Accuracy::	+-0.03mm	Operating Temperature::	0°C-45°C
Working Humidity::	5%-95%	Laser Source:	Chinese Or Imported
Voltage::	AC380V±10% 50HZ(60HZ)	Cutting Area:	3000x1500mm

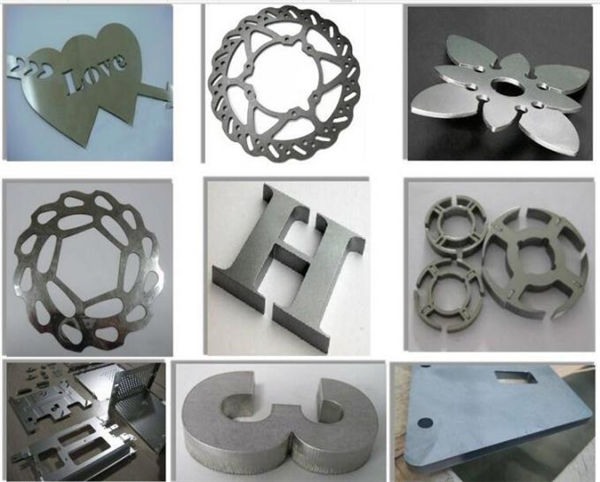

Advantage of fiber laser cutting machine

1. Excellent Path Quality: Smaller laser dot and high work efficiency, high quality.
2. High Cutting Speed: cutting speed is 2-3 times than same power CO2 laser cutting machine.
3. Stable Running: adopt top world import fiber lasers, stable performance, key parts can reach 100,000 hours;
4. High Efficiency for photoelectric conversion: Compare with CO2 laser cutting machine, fiber laser cutting machine have three times photoelectric conversion efficiency.
5. Low Cost: Save energy and protect environment. Photoelectric conversion rate is up to 25-30%. Low electric power consumption, it is only about 20%-30% of traditional CO2 laser cutting machine.
6. Low Maintenance: fiber line transmission no need reflect lens, save maintenance cost;
7 Easy Operations: fiber line transmission, no adjustment of optical path.

Main Features of Fiber laser cutting machine

Machine body:
1. Taiyi's Machine body with 8mm steel structure, 600℃ heat treatment, Precise welding, to make sure 20 years usage without deformation.
2. Gantry with magnesium alloy casting, Strong stability without deformation, Fast movement.
3. High efficiency zoning smoking system at both sides of machine body, Strong segmented dust and smoking collection, it will reduce harm to worker.
4. Imported precision flange reducer and servo motor, Fast running speed.
5. 70 blades and 6 slide bars on the machine bed, with close blades to reduce machine warning, slide bars working with cylinders to upload and download sheets easily.
6. Flexible loading box can be opended front and both sides which is convinient for machine working condition.

Specification

Laser source medium	Fiber
Cutting range (L * W)	3000 mm × 15000 mm
Z axle stroke	250 mm
Max. positioning speed	120 m/min
X,Y axle Max. accelerate speed	1.0G
Cooling form	Water cooling
Laser wavelength	1070nm
Output power of laser source	500W/1000W / 1500W / 2000W 2500W / 3000W / 4000W (Optional)
Min. cutting gap	≤ 0.1 mm
Positioning accuracy of X, Y and Z axles	± 0.03 mm
Repeated positioning accuracy of X, Y and Z axles	± 0.01 mm
Thickness of cutting material (according to material)	0.2 - 25 mm
Driver model	Imported servo motor
Power requirement	380V, 50/60 Hz
Working temperature	0-45℃
Continuous working time	24 Hours
Machine weight	About 12000 Kgs
Total protection level of power supply	IP54

Cutting Thickness Reference Table

Laser Power	Max cutting thickness
Laser Power	Carbon steel(mm)	Stainless steel(mm)	Aluminum (mm)	Brass (mm)
700W	8	3	1	1
1000W	12	4	2	2.5
1500W	14	5	4	3
2000W	16	6	5	4
3000W	22	10	6	8
Above parameter for reference only

Detailed Images

	Name:Machine body and accessoriesa.600℃ heat treatment, 24 hours cooling in the oven, accurate CO2 protection welding, to make sure 20 years usage without deformation. b.Synchronous X/Y/Z axes: The Z-axis can run 150mm, suitable for cutting many varieties of metal sheets. c.High quality guarantees its durability and easier maintenance.
Name:AC servo motor & driverThe imported servo motor (Y-axis driven by two servo motors) along with the sophisticated planetary reducer ensures steady, precise and reliable drive.
	Name:Precision Linear GuidesAdvanced cutting system, laser power and servo movement suit each other perfectly, imported high precision gear and rack drive system, exchangeable double work table, to ensure higher processing speed and accuracy..
Name:Cutting headThe contactless cutting head has the function of auto height tracking and anti-collision, which greatly improves cutting speed, smoothness and cutting accuracy under the same output power. In a word, the cutting efficiency can be increased.
	Name:Laser sourcefast speed,high precision cutting line, and smooth cutting edge
