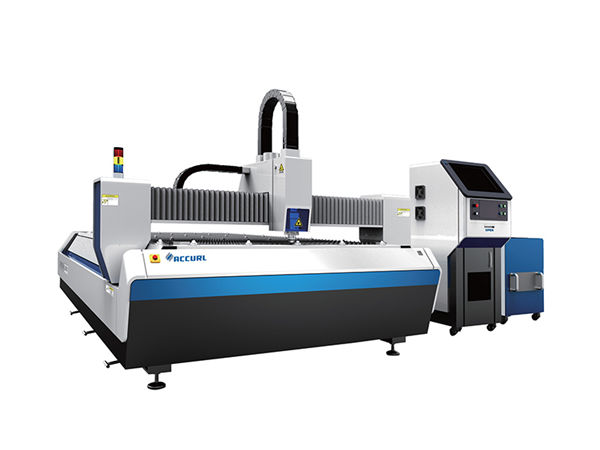

open type fiber laser metal cutting machine , cnc laser engraving cutting machine

Product Details

Certification: CE / ISO / FDA / SGS / TUV

Payment & Shipping Terms:

Minimum Order Quantity: 1

Price: Negotiable

Packaging Details: Wooden case

Delivery Time: 15 workingdays

Payment Terms: T/T, L/C, Western Union

Supply Ability: 2000 units

1. Stability and reliability of light path system and control system
2. Imported original fiber lasers,high and stable function,lifespan is over 100000 hours
3. Higher cutting quality and efficiency ,cutting speed is up to 80m/min with appearance and beautiful cutting edge
4. German high performance reducer,gear and rack;Japanese guide and ball screw. Applicable Industry and materials :fiber laser cutting machine application:metal cutting, electrical switch manufacturing, aerospace, food machinery, textile machinery, engineering machinery, locomotive manufacturing, agriculture and forestry machinery, elevatormanufacture, special vehicles, household appliances, tools, processing, IT manufacturing, oil machinery, food machinery, diamond tools, welding, welding gear, metal materials, decoration advertising, laser surface treatment of foreign processing services, such as all kinds of machinery processing industry.Our fiber laser cutting machine‘s Application Materials:Professional used to cut thin sheet metal, in a variety of high quality 0.5 -3 mm carbon steel sheet cutting, can also be cutting stainless steel plate, aluminum alloy plate, galvanized sheet, electrolyticplate, silicon steel, titanium alloy, aluminium zinc plate and other metal.

Main Configuration

^Item	^Name	^Quantity	^Brand
^Laser	^{fiber laser}	^{1 SET}	^Maxphotonics
^{Cutting head}	^{Specialized cutting head}	^{1 SET}	^{RayTools BT( Switzerland)}
	^{Machine bed}	^{1 SET}	^China
	^{Precise Rack}	^{1 SET}	^{TAIWAN DINSENSE}
^{Machine body}	^{Precise linear guide rail}	^{1 SET}	^{TAIWAN HIWIN/ TAIWAN shac}
	^{X,Y axis servo and driver}	^{1 SET}	^LETRO
	^{Reducer system}	^{1 SET}	^{TAIWAN DINSENSE}
	^controller	^{1 SET}	^{FRANCE Schneider}
	^{Machine bed accessories}	^{1 SET}	^CHINA
^{Digital cutting system}	^{Controller system}	^{1 SET}	^{Shanghai cypcut /Shanghai Empower}
	^Chiller	^{1 SET}	S&A
	^{Water recycling equipment}	^{1 SET}	^China

Technical Parameters

^{Laser Working Medium}	^ND:YVO4
^{Laser Wavelength}	^1070nm
^Power	^{500W/800W/1000W}
^{Beam Quality}	^＜0.373mrad
^{Max cutting thickness}	^{Depends on power}
^{Working area}	³⁰⁰^0mm×1500mm
^{Positioning Accuracy}	^{≤±0.05㎜/m}
^{Repeatition Accuracy}	^{≤±0.05㎜/m}
^{Power Supply}	^380V/50Hz

1).Open Type Fiber Laser Cutting Machine all in one
2). Applications primarily suited for cutting stainless, carbon, aluminum, titanium, and most non-ferrous metals
3). Fiber laser power source options from 300W to 1KW
4). Fiber offers reduced maintenance requirements and operating costs compared to CO2
5). Position acccuracy <+/- 0.04mm
6). Japanese servo motors & drivers
7). Drive system X-axis ball screw drive, Y-axis square rail with rack and pinion gear
8). Working voltage: 380V, 50Hz /60Hz

Cutting Machine Application

The equipment meets the parts processing requirements of most industries, working accuracy is stable. At present, laser cutting machines have been widely used in electronics, electrical, mechanical hardware, new energy lithium, packaging, solar, LED, automotive and other industries.

FAQ

Q1: How can I get the best machine for me?
You can tell us your working material, detail work by picture or vedio so that we can judge whether our machine can meet your need or not. Then we can give you the best model depends on our experience.

Q2: This is the first time I use this kind of machine, is it easy to operate?
We will send you manual and guide vedio in English, it can teach you how to operate the machine. If you still can not learn how to use it, we can help you by "Teamviewer" online help software.Or we can talk by phone, email or other contact ways.

Q3: If the machine has problem in my place, how could I do?
We could send free parts to you in warranty period if machines have any problem under "normal use".

Q4:Do You Arrange Shipment For The Machines?
Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or their agents.
