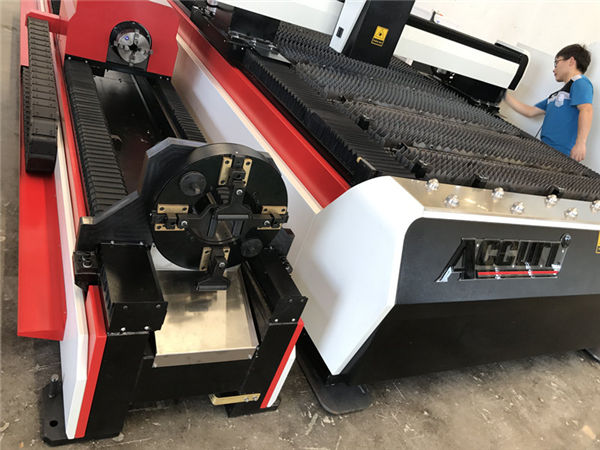

ss pipes 3d laser cutting machine / 3 axis fiber sheet metal cutter

Product Details

Certification: CE

Payment & Shipping Terms:

Minimum Order Quantity: 1Set

Price: Negotiable

Packaging Details: 1*20GP container

Delivery Time: 30days

Payment Terms: L/C, D/A, T/T, D/P, Western Union, L/C

Supply Ability: 50sets per month

Detailed Product Description

Application::	All Metal Material	Cutting Thickness:	SS Upto 10mm, MS Upto 22cm
Laser Type::	Fiber	CNC Or Not::	Yes
Cooling Mode::	Water Cooling	Control Software::	Cypcut
Graphic Format Supported::	AI, BMP, DST, DWG, DXF, DXP, LAS, PLT	Place Of Origin::	China
Model Number::	TY-3015DG	After-sales Service Provided::	Engineers Available To Service Machinery Overseas
Repeating Accuracy::	+-0.03mm	Operating Temperature::	0°C-45°C
Working Humidity::	5%-95%	Pipes Cutting Range:	20-130mmx3000mm
Voltage::	AC380V±10% 50HZ(60HZ)	Cutting Area:	3000*1500mm Standard, Bigger Can Be Customized

Machine body

1. Taiyi's Machine body with 8mm steel structure, 600℃ heat treatment, Precise welding, to make sure 20 years usage without deformation.

2. Gantry with magnesium alloy casting, Strong stability without deformation, Fast movement.

3. High efficiency zoning smoking system at both sides of machine body, Strong segmented dust and smoking collection, it will reduce harm to worker.

4. Imported precision flange reducer and servo motor, Fast running speed.

5. 70 blades and 6 slide bars on the machine bed, with close blades to reduce machine warning, slide bars working with cylinders to upload and download sheets easily.

6. Flexible loading box can be opended front and both sides which is convinient for machine working condition.

Advantage of fiber laser cutting machine

1. Compare with traditional laser, fiber laser is more environmental protection:
2. Much lower power consumption: fiber laser's photoelectric conversion efficiency 15times higher than traditional laser.
3. Higher laser spot quality: single-module laser source
4. Lower consumption: Electric consumption is under 7KW per hour.

Cost analysis per hour
No.	Item	Cutting SS (1mm)	Cutting Steel (5mm)	Remark
1	Electric	1.4USD/hour	1.4USD/hour	1. If we use Air for cutting, then cost= electric charge of air compressor + electric of machine+consume parts 2. The cost we counted based on the local charges in Dongguan, there are some discrepancy for different countries. 3.For cutting different thickness, there are different gus consume
2	Gas (N2/O2)	2USD/hour	1.4USD/hour
3	Protective lens, nozzle	0.06USD/hour	0.07USD/hour
Total cost		3.46USD/hour	2.87USD/hour

Specification

Model	TY-3015DG
Laser source medium	Fiber
Cutting range (L * W)	3000 mm × 1500 mm
Z axle stroke	250 mm
Max. positioning speed	120 m/min
X,Y axle Max. accelerate speed	1.0G
Cooling form	Water cooling
Laser wavelength	1070nm
Output power of laser source	500W/1000W / 1500W / 2000W 2500W / 3000W / 4000W (Optional)
Min. cutting gap	≤ 0.1 mm
Positioning accuracy of X, Y and Z axles	± 0.03 mm
Repeated positioning accuracy of X, Y and Z axles	± 0.01 mm
Thickness of cutting material (according to material)	0.2 - 25 mm
Driver model	Imported servo motor
Power requirement	380V, 50/60 Hz
Working temperature	0-45℃
Continuous working time	24 Hours
Machine weight	About 12000 Kgs
Total protection level of power supply	IP54

Detailed Images

	Name:Machine body and accessories a.600℃ heat treatment, 24 hours cooling in the oven, accurate CO2 protection welding, to make sure 20 years usage without deformation. b.Synchronous X/Y/Z axes: The Z-axis can run 150mm, suitable for cutting many varieties of metal sheets. c.High quality guarantees its durability and easier maintenance.
Name:AC servo motor & driver The imported servo motor (Y-axis driven by two servo motors) along with the sophisticated planetary reducer ensures steady, precise and reliable drive.
	Name:Precision Linear Guides Advanced cutting system, laser power and servo movement suit each other perfectly, imported high precision gear and rack drive system, exchangeable double work table, to ensure higher processing speed and accuracy..
Name:Cutting head The contactless cutting head has the function of auto height tracking and anti-collision, which greatly improves cutting speed, smoothness and cutting accuracy under the same output power. In a word, the cutting efficiency can be increased.
	Name:Laser source fast speed,high precision cutting line, and smooth cutting edge

Name:Machine body and accessories

a.600℃ heat treatment, 24 hours cooling in the oven, accurate CO2 protection welding, to make sure 20 years usage without deformation.
b.Synchronous X/Y/Z axes: The Z-axis can run 150mm, suitable for cutting many varieties of metal sheets.
c.High quality guarantees its durability and easier maintenance.

Name:AC servo motor & driver

The imported servo motor (Y-axis driven by two servo motors) along with the sophisticated planetary reducer ensures steady, precise and reliable drive.

Name:Precision Linear Guides

Advanced cutting system, laser power and servo movement suit each other perfectly, imported high precision gear and rack drive system, exchangeable double work table, to ensure higher processing speed and accuracy..

Name:Cutting head

The contactless cutting head has the function of auto height tracking and anti-collision, which greatly improves cutting speed, smoothness and cutting accuracy under the same output power. In a word, the cutting efficiency can be increased.

Name:Laser source

fast speed,high precision cutting line, and smooth cutting edge

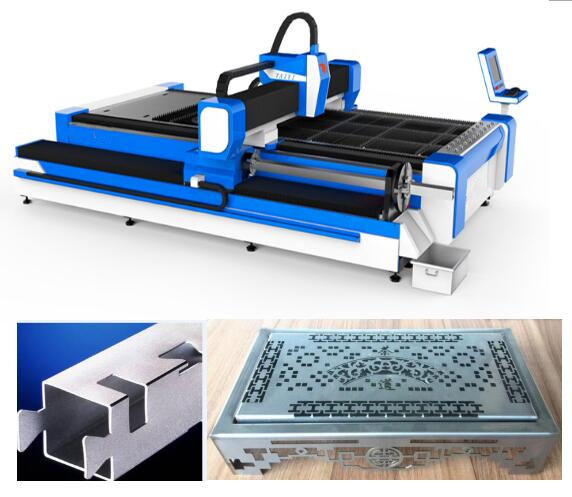

Cutting Samples

Training

After signing the contract , your company can arrange technologist come our factory to learn basic knowledge of equipment and operating essentials , sufficient training time about 1-3 days , the training content is as follows:
a) Common drawing software training ;
b) Machine on and off training procedures ;
c) The significance of control panel and software parameters, parameters range’s setting;
d) Basic cleaning and maintenance of the machine ;
e) Common Hardware Troubleshooting ;
f) Caution of operation,

Warranty of SS pipes and sheets laser cutting machine

a).1Year for the whole machine(Man-made Damage is negotiated.).
b).Laser source 2 Years warranty
c).Lifelong maintenance and spare parts supply
d).Free training for operation staffs. (engineer can go abroad is negotiated.)
