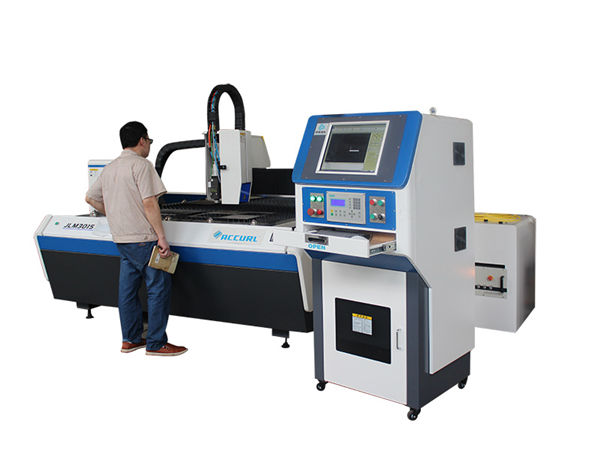

stainless steel precision fiber laser cutting machine high speed ball open structure

Product Details

Certification: ISO9001:2008

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET

Price: negotiation

Packaging Details: Wooden Case

Delivery Time: 15- 30 Work Days

Supply Ability: 2000 units per month

Detailed Product Description

Product Name:	High Precision Fiber Laser Cutting Machine For With Small Cutting Area For Metal Cutting	Laser Power:	500W/800W/1000W/2000W/3000W
Working Area:	500*500mm	Max Moving Speed:	60m/min
Positioning Accuracy:	± 0.01-0.03	Powe Supply:	3×380V±10% 220V±10%
Package:	Wooden Case	Warranty:	1 Year
Application:	Metal Material	Control Software:	Cypcut
CNC Or Not:	Yes	Condition:	New

Fiber laser Cutting Machine Features

♦ The double rack and pinion driving system and imported open-type CNC system enable high processing accuracy and high working efficiency during high speed cutting.
♦ Standard collocation of 500W fiber laser generator and optional 500W 750w, 1000W 2000W IPG or Maxphotonics or Nlight fiber laser generator ensures low operation and maintenance cost.
♦ Open structure is easy and convenient for material uploading and unloading.Drawer collecting device makes receiving materials more convenient.
♦ Aiming at high speed cutting, we design and manufacture strengthened welded machine body after 2 times of aging process which ensures long-term accuracy and stability of performance.
♦ Standard collocation of dual-pressure gas control system of 3 gas sources (high pressure air, nitrogen, oxygen) meets the processing requirement of all kinds of materials. Easy operation and low cost.
♦ Standard collocation of automatic nesting software (including material management and optimized processing technology) and database of process parameters is provided for easy operation and simple management.
Main Features of 500W High Precision Fiber Laser Cutting Machine:
BALL RAIL SYSTEM
Smooth & friction guided motion, high precision & high speed ball, long life & better load carrying capacity.

Ball screw mechanism
Precision movement imparted through ball screw mechanism. Supreme quality of ball screw to provide high accuracy and repeatability at high speed with low noise runner block.

User friendly software
User-friendly software for laser power and pulse frequency, pulse duration along with position control.

Nesting
Nesting software to nest different types of jobs in single sheet and optimal use of raw material. Accommodation of different types of jobs from scrap material & common edge cutting. Complete material management through user-friendly software.

Height sensing unit
Adjusting preset height automatically. It helps to cut little sloppy (non-flat or non-linear) surface of sheet. Non-contact & contact types of versions are available.

STRUCTURAL DESIGN
Structural design is such that it can withstand heavy loads. Vibration pads are used for sustaining the structural damping.

REMOTE CONTROL
Flexible machine controls from remote place with emergency stop facility, easy to understand or self-explanatory audio & video display machine.

SHEET LOADING & CLAMPING
Pneumatically actuated loader with ball on the top of it for easy sliding of the sheet. Pneumatically controlled firm clamping on the sheet. It can adjust the position of the clamp on the table. Safe loading and clamping for operator who is loading and un-loading the sheet.

DETACHABLE OPTICS
Replacements of mirror without any change in linked alignments.

THERMAL OPTICS STABILITY
Parallel water-cooling system with temperature control. It eliminates the thermal expansion of optics and increases peak power life.

OPTICS BELLOWS
Metallic bellows for protection of optics form contamination.

CONTROL & DISPLAY
SIEMENS or PC based SLT Ltd. controls available

Product Advantages

Fiber Laser Generator	YAG Lamp Pump Laser Generator	CO2 RF Metal Laser Tube
Power	500W/750W/1000W/2000W/3000W	500W/650W/850W	300W/500W
Advantages	Excellent laser beam quality, high cutting precision, high cutting speed, high efficient photoelectric conversion rate, low use-cost and maintenance cost, easy operation and convenient maintenance	Compared with fiber laser generator and CO2 RF metal laser tube of the same power, it has lower price, thicker material cutting ability, wider application field and lower one-time investment.	It can cut metal sheets and non-metal materials. Wider range of applicable materials. Adjustable output power. Maintenance free. Easy to operate and convenient to use.
Applicable Materials	All kinds of metal sheets and pipes	All kinds of metal sheets and pipes	All kinds of metal sheets and other nonmetal materials
Applicable Industry	Sheet metal, hardware, watches, metal art craft works, etc.	Sheet metal, kitchenware, metal letters and accessories & hardware, etc.	Sheet metal, advertising, furniture and

Technical Parameter

Working size		500×500(mm)
Max. Acceleration		1.2g
X AXIS	Max. Moving speed	60m/min
	Route	500mm
	Positioning accuracy	±0.01mm
	Repeatition accuracy	±0.004mm
Y AXIS	Max. Moving speed	60m/min
	Route	500mm
	Positioning accuracy	±0.01mm
	Repeatition accuracy	±0.004mm
Z AXIS	Route	100mm

Working condition

1	Working temperature	-10℃～45℃
2	Relativede Humidity	＜90% no condenser
3	Environment	Good ventilation, no vibration
4	Power supply	3×380V±10% 220V±10%
5	Power frequency	50Hz

Application of Precision Fiber Laser Cutting Machine

1. Application Materials: Fiber Laser Cutting Equipment is suitable for metal cutting with Stainless Steel Sheet, Mild Steel Plate, Carbon Steel Sheet, Alloy Steel Plate, Spring Steel Sheet, Iron Plate, Galvanized Iron, Galvanized Sheet, Aluminum Plate, Copper Sheet, Brass Sheet, Bronze Plate, Gold Plate, Silver Plate, Titanium Plate, Metal Sheet, Metal Plate, Tubes and Pipes, etc

2. Application Industries: Fiber Laser Cutting Machines are widely used in manufacturing Billboard, Advertising, Signs, Signage, Metal Letters, LED Letters, Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal Crafts, Metal Art Ware, Elevator Panel Cutting, Hardware, Auto Parts, Glasses Frame, Electronic Parts, Nameplates, etc.
