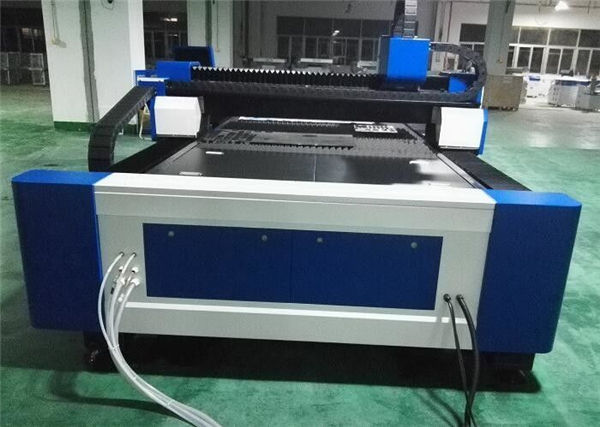

steel fiber laser cutting machine 60m/min

Product Details

Certification: CE
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: Negotiable
Packaging Details: 1*20GP container
Delivery Time: 30days
Payment Terms: L/C, D/A, T/T, D/P, Western Union

Detailed Product Description

Application::	All Metal Material	Cutting Thickness:	SS Upto 12mm, MS Upto 22cm
Laser Type::	Imported Original Fiber Laser	Product Name:	Steel Fiber Laser Cutting Machine 60m/Min
Min.line Width:	0.1mm	Control Software::	Cypcut
Graphic Format Supported::	AI, BMP, DST, DWG, DXF, DXP, LAS, PLT	Brand Name::	TAIYI LASER
Repeating Accuracy::	+/-0.03mm	Operating Temperature::	0°C-45°C
Cooling Mode:	Water Cooling	Laser Source:	IPG/Nlight/Raycus/Max
Voltage::	AC380V±10% 50HZ(60HZ)	Cutting Area:	3000x1500mm,4000*2000mm Customized

Advantage of fiber laser machine

1) Excellent beam quality: Smaller focus diameter and high work efficiency, high quality.
2) High cutting speed: Cutting speed is more than 60m/min
3) Stable running: Adopting the top world import fiber lasers, stable performance, key parts can
reach 100,000 hours;
4) High efficiency for photoelectric conversion: Compare with CO2 laser cutting machine,
fiber laser cutting machine has three times photoelectric conversion efficiency
5) Low cost & Low maintenance: Save energy and protect environment. Photoelectric conversion rate
is up to 25-30%. Low electric power consumption, it is only about 20%-30% of traditional CO2 laser
cutting machine. Fiber line transmission no need reflect lens, save maintenance cost;
6) Easy operation: fiber line transmission, no adjustment of optical path;
7) Super flexible optical effects: Compact design, easy to flexible manufacturing requirements.

Feature & Property

1.The machine enjoys a good performance with high cutting speed, high efficiency, safety and stability.
2.The laser spot enjoys good quality. And the machine distorts just slightly. Besides, the material can have a smooth and nice appearance.
3. After tempering treatment, the frame with high rigidity is of high vibration-absorbed performance. The frame with gantry structure is one-step processed in large CNC gantry machining center. With optimized structure, the machine enjoys stability and high accuracy which can be controlled within 0.01mm/m.
4. Imported servo motor, planetary reducer, and sophisticated direction drive mechanism ensure steadiness and accuracy.
5. Intuitive HMI with many practical functions is easy to operate.
6. Imported bevel gear, helical rack, linear guide rail ensure highly precise running direction.
7.The auto-height & anti-collision system automatically adjusts the hermetic cutting head at the proper height to cut at a fixed distance.
8.The power supply of the machine is designed with automatic safety protection, and features fault alarm.

Specification

Laser source medium	Fiber
Cutting range (L * W)	3000 mm × 15000 mm
Z axle stroke	250 mm
Max. positioning speed	120 m/min
X,Y axle Max. accelerate speed	1.0G
Cooling form	Water cooling
Laser wavelength	1070nm
Output power of laser source	500W/1000W / 1500W / 2000W 2500W / 3000W / 4000W (Optional)
Min. cutting gap	≤ 0.1 mm
Positioning accuracy of X, Y and Z axles	± 0.03 mm
Repeated positioning accuracy of X, Y and Z axles	± 0.01 mm
Thickness of cutting material (according to material)	0.2 - 25 mm
Driver model	Imported servo motor
Power requirement	380V, 50/60 Hz
Working temperature	0-45℃
Continuous working time	24 Hours
Machine weight	About 12000 Kgs
Total protection level of power supply	IP54

Cutting materials

The fiber laser can cut all kinds of non ferrous metals, such as copper,aluminum,this high reflective materials, and tungsten,can also cut stainless steel,carbon steel, manganese steel,galvanized sheet,aluminum platform gold alloy plate, and other rare metals.

Application industry

The fiber laser cutting machine can be widely used in aerospace, aviation, electronics, elevators, medical equipment, kitchen electrical, auto parts, electrical equipment, gold plated chassis cabinets,mechanical equipment,lighting hardware,advertising signs, display equipment,all kinds of metal products, sheet metal cutting processing and other industries.

Detailed Images

	Name:Machine body and accessories a.600℃ heat treatment, 24 hours cooling in the oven, accurate CO2 protection welding, to make sure 20 years usage without deformation. b.Synchronous X/Y/Z axes: The Z-axis can run 150mm, suitable for cutting many varieties of metal sheets. c.High quality guarantees its durability and easier maintenance.
Name:AC servo motor & driver The imported servo motor (Y-axis driven by two servo motors) along with the sophisticated planetary reducer ensures steady, precise and reliable drive.
	Name:Precision Linear Guides Advanced cutting system, laser power and servo movement suit each other perfectly, imported high precision gear and rack drive system, exchangeable double work table, to ensure higher processing speed and accuracy..
Name:Cutting head The contactless cutting head has the function of auto height tracking and anti-collision, which greatly improves cutting speed, smoothness and cutting accuracy under the same output power. In a word, the cutting efficiency can be increased.
	Name:Laser source fast speed,high precision cutting line, and smooth cutting edge

Name:Machine body and accessories

a.600℃ heat treatment, 24 hours cooling in the oven, accurate CO2 protection welding, to make sure 20 years usage without deformation.
b.Synchronous X/Y/Z axes: The Z-axis can run 150mm, suitable for cutting many varieties of metal sheets.
c.High quality guarantees its durability and easier maintenance.

Name:AC servo motor & driver

The imported servo motor (Y-axis driven by two servo motors) along with the sophisticated planetary reducer ensures steady, precise and reliable drive.

Name:Precision Linear Guides

Advanced cutting system, laser power and servo movement suit each other perfectly, imported high precision gear and rack drive system, exchangeable double work table, to ensure higher processing speed and accuracy..

Name:Cutting head

The contactless cutting head has the function of auto height tracking and anti-collision, which greatly improves cutting speed, smoothness and cutting accuracy under the same output power. In a word, the cutting efficiency can be increased.

Name:Laser source

fast speed,high precision cutting line, and smooth cutting edge

Cutting Samples

Training

After-sales service, from training to machine installation (3 ways):
1.Training video and user's manual in English to be offered for installation, operation, maintenance and trouble-shooting, and technical guide to be offered by e-mail, fax, telephone/whatsapp /skype//and so on, when you meet some problems of installation, using or adjusting.
2.Your company can arrange technologist come our factory to learn basic knowledge of equipment and operating essentials , sufficient training time about 3-5days , the training content is as follows:
a) Common drawing software training ;
b) Machine on and off training procedures ;
c) The significance of control panel and software parameters, parameters range’s setting
d) Basic cleaning and maintenance of the machine ;
e) Common Hardware Troubleshooting ;
f) Caution of operation.
3.Door-to-door instruction training service. visa, traveling expenses and accommodation will be at customer's cost. It's better to arrange a translator for both of our engineers during the training period. Training Time: 3-5days.
