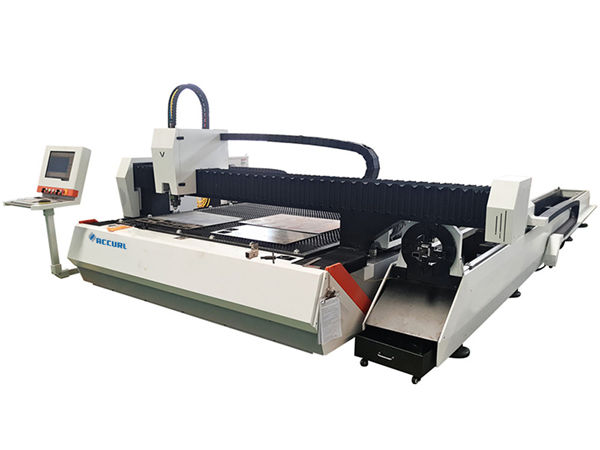

tube metal fiber laser cutting machine 1500w adjustable speed with automatic feeding

Product Details

Certification: CE，FDA，ISO9001
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: USD
Packaging Details: Wooden Box
Delivery Time: 15-30 Days
Payment Terms: T/T, MoneyGram, D/A
Supply Ability: 100 SETS PER MONTH

Detailed Product Description

Model NO.:	RL-T3015-1500	Product Name:	1500W Tube Metal Fiber Laser Cutting Machine With Automatic Feeding
Guide Rails:	Taiwan Hi-Win Square Guide	Fiber Laser Cutting Head:	USA Lasermech
Cutting Speed:	Adjustable	Floor Space:	5.6m X 3.2m
Laser Type:	Max, Raycus, IPG	Control System:	Professional Laser Control System--Cypcut

Our Core Advantages

1. Usually have 50 units of laser marking machine(Fiber, CO2, UV, Mopa) in stock, lead time 3-5 days.
2. Sold 4500 units of laser machines in China market in 2017, with reasonable price.
3. Fiber Laser cutting machine, (700W, 1000W, 1500W+ laser cutter), usually sell 30 units/month in China.

How Laser Cutting Works

Laser cutting is a technology that uses a laser to cut materials, and is typically used for industrial manufacturing applications, but is also starting to be used by schools, small businesses, and hobbyists. Laser cutting works by directing the output of a high-power laser most commonly through optics. The laser optics and CNC (computer numerical control) are used to direct the material or the laser beam generated. A typical commercial laser for cutting materials would involve a motion control system to follow a CNC of the pattern to be cut onto the material. The focused laser beam is directed at the material, which then either melts, burns, vaporizes away, or is blown away by a jet of gas, leaving an edge with a high-quality surface finish. Industrial laser cutters are used to cut flat-sheet material as well as structural and piping materials.

Riselaser Fiber Laser Cutting Advantages

1, Cost saving on power consumption/ only 20-30% of co2 laser cutting machine under same power.
2, Flexibility and precision cutting of simple or complex parts
3, Adopts imported world brand fiber laser/Life time over 100,000hrs
4, Imported servo motor and gearing system ensure precision cutting
5, High quality cut with no extra finishing required
6, Higher cutting speed and efficient, speed of cutting plate over 10 meters per minute
7, Non contact cut which means no marks or contamination of the material
8, Ability to cut virtually any sheet metal

Specifications

Medium of laser	Semiconductor pump continuous ytterbium doped fiber
Laser wavelength	1070nm
Laser output power	500W	1000W
Cutting area(mm)(L×W)	3000mm×1500mm
Max cutting speed(m/min)	18 m/min	24 m/min
Min line width	< 0.1mm	< 0.125mm
Cutting depth	0.2mm---5mm	0.2mm---8mm
Driving Way	Imported servo motor
Tranmission Way	Y-axis imported gear rack double driver,X-axis imported gear rack
Operational Temp Range	10 ~ 40ºC
Electrical Requirements	380V/50Hz.60Amp
Cooling Mode	Water cooled
Continuous working time	24 hours
Warranty:	2 years on laser source
Weight	About 3000kg
Outline size(mm)	4270mm×2420mm×1750mm (L×W×H)

pplicable Materials

Stainless steel, carbon steel, alloy steel, silicon steel, spring steel, aluminum, aluminum alloy, galvanized sheet and other metal pipes and tubes.

Applicable Industry

It is widely applied in industrial pipeline processing, explosion-proof equipment, military industry, chemical industry, oil exploration, lamps and lanterns, metal processing, ironware, building, etc.

Fiber laser cutting samples

Our Service

1.One years warranty for machine, One years for domestic source (One year for IPG source)
2. Technical support
Lifelong technical support online or by email and 18 hours online service to help you use our machine well.
3. Oversea service
Offer oversea service for training,installing, operating if necessary (Buyer need offer food & accommodation, round tickets and engineer charges USD200/day)
4. Training service
Offer training at our factory for free (you could visit us and learn).

Pre-sale service

1.Free sample cutting
For free sample cutting/testing, please send us your CAD file, we will do cutting here and make video to show you the cutting, or send sample to you check cutting quality.
2.Customized machine design
According to customer's application, we may revise our machine accordingly for customer's convenience and high production efficiency.

After-sale service

1.Machine will be supplied with training video and user's manual in English for installation, operation, maintenance and trouble-shooting, and shall give technical guide by e-mail, fax, telephone, skype, whatsapp, etc for fast solution. We can offer technician go to customer's site for oversea service, customer shall cover visa, ticket, local living cost.
2. Customer may come to our factory for training. We will offer training of installation, operation, machine trouble-shooting, and maintenance. During training in our workshop, we offer free training and living cost for 7 days, limit 2 people.
